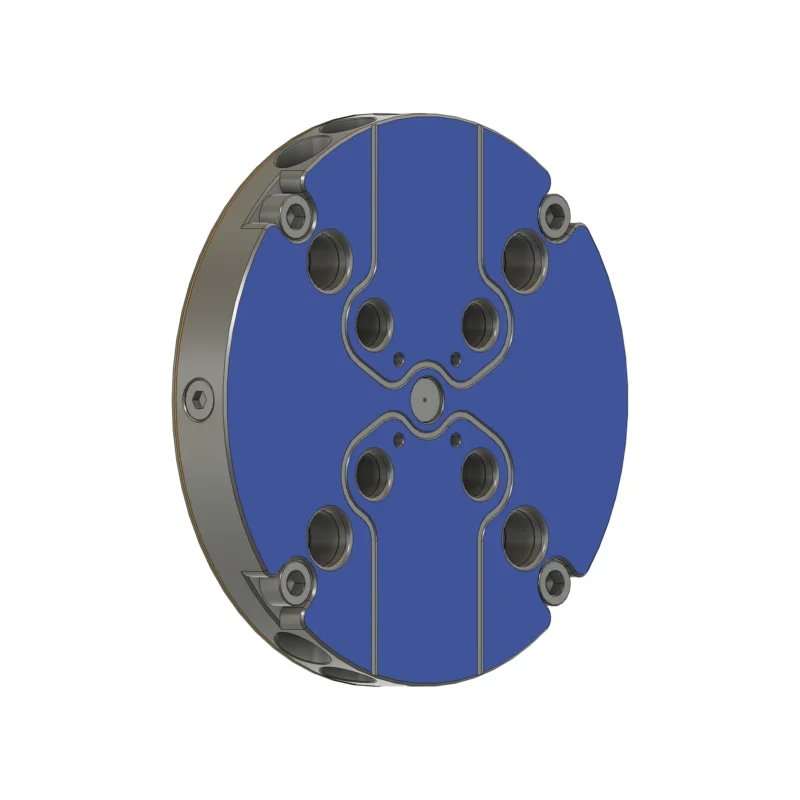

Zero-Point Plate – Round – 52 / 96 Grid – 199x27mm
$976.00 incl. GST

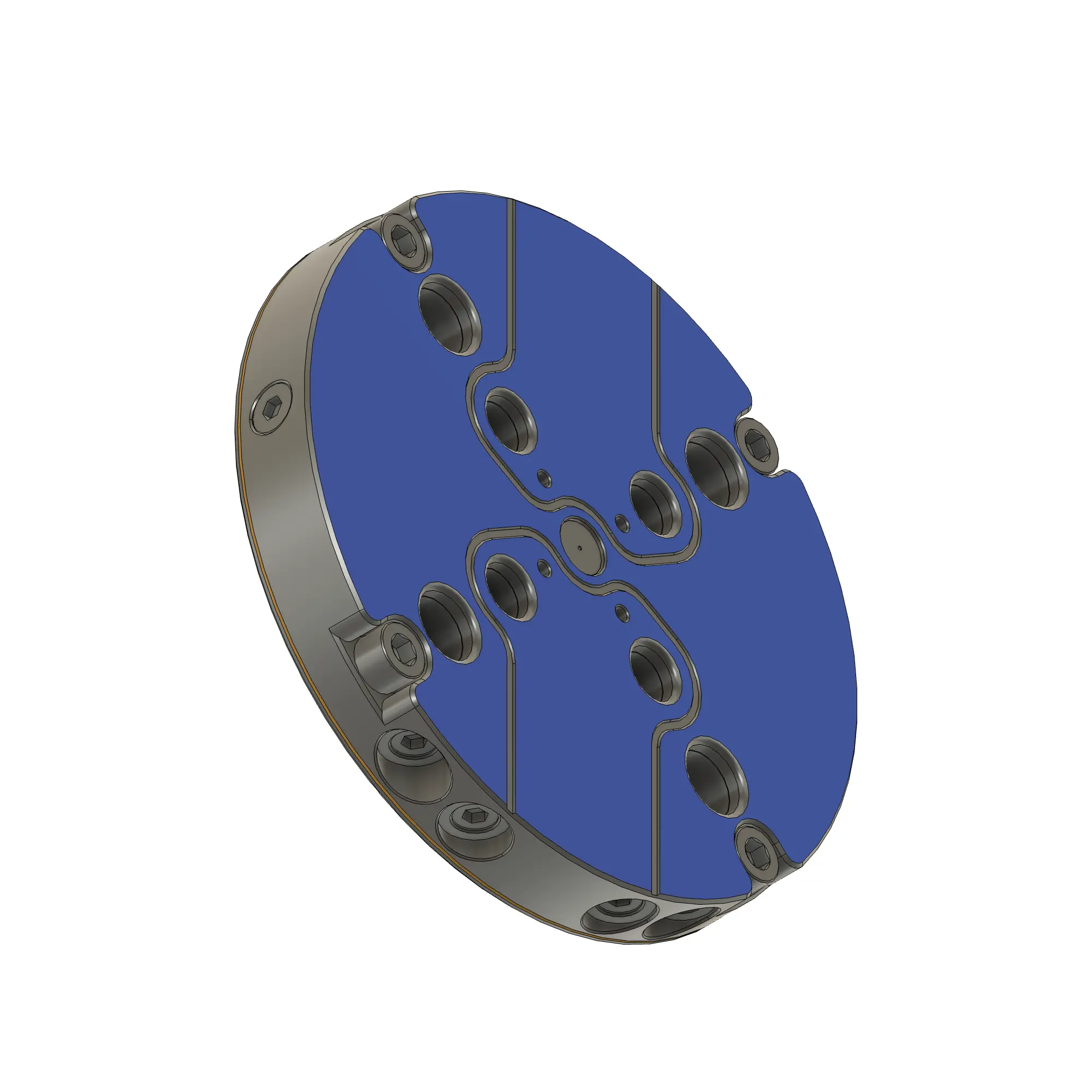

The TFG Round 96 & 52 Zero Point Plate is the ultimate crossover workholding solution, engineered to unify your shop’s tooling ecosystem. This high-precision receiver features a unique dual-grid interface, allowing you to mount both System 52 (Ø16 studs) and System 96 (Ø20 studs) fixtures on a single plate. Crafted from premium SUS440C Stainless Steel (HRC 55-58), it offers extreme wear resistance and total immunity to coolant-induced corrosion—a significant upgrade over standard tool steel alternatives. With a robust 4-rivet locking system delivering 18KN of force and a repeatability of ≤ 0.005mm, it is ideal for 5-axis rotary tables and precision milling centers where switching between small-part 52mm vices and larger 96mm setups must be done in seconds without sacrificing accuracy.
Additional information
| Weight | 5.5 kg |
|---|---|
| Dimensions | 19.9 × 2.7 cm |
| Material | |
| Grid System | |
| Torque | 35Nm |
| Stud Pitch | Ø16/52mm , Ø20/96mm |
| Locking Force | 18KN (4 Rivet) |
| Repeatability | |
| Precision Locating Holes | 4 holes, Ø12G7 |
| T-Slot Spacing | 96mm |
| Pitch Circle Diameter | Ø180mm |
