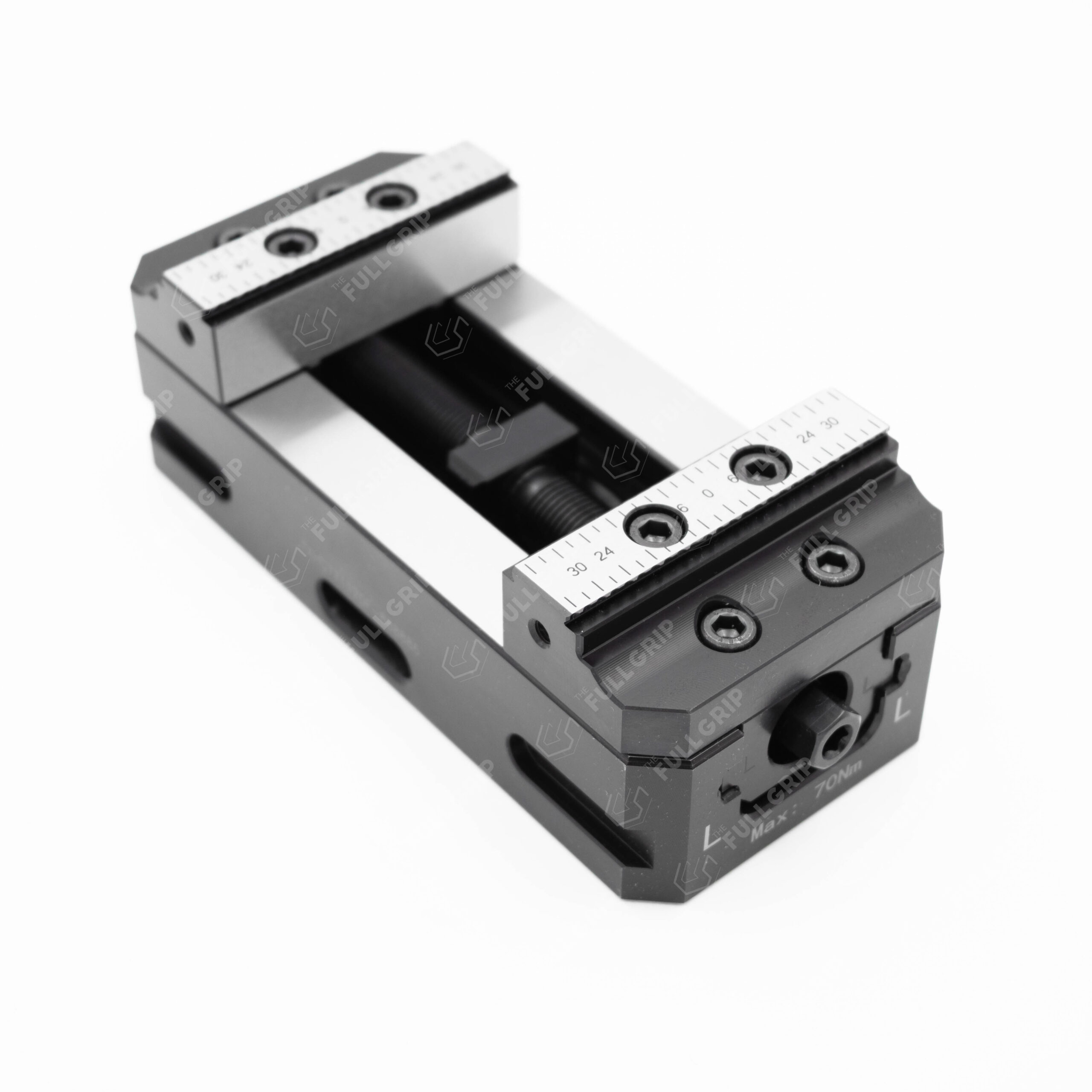

TFG Vice for Grid 52 – 77x130mm – Removable Jaws
$479.00
Zero-Point Combo Plate – 52 / 96 Grid – Rectangle – 192x156x27mm
$1,080.00

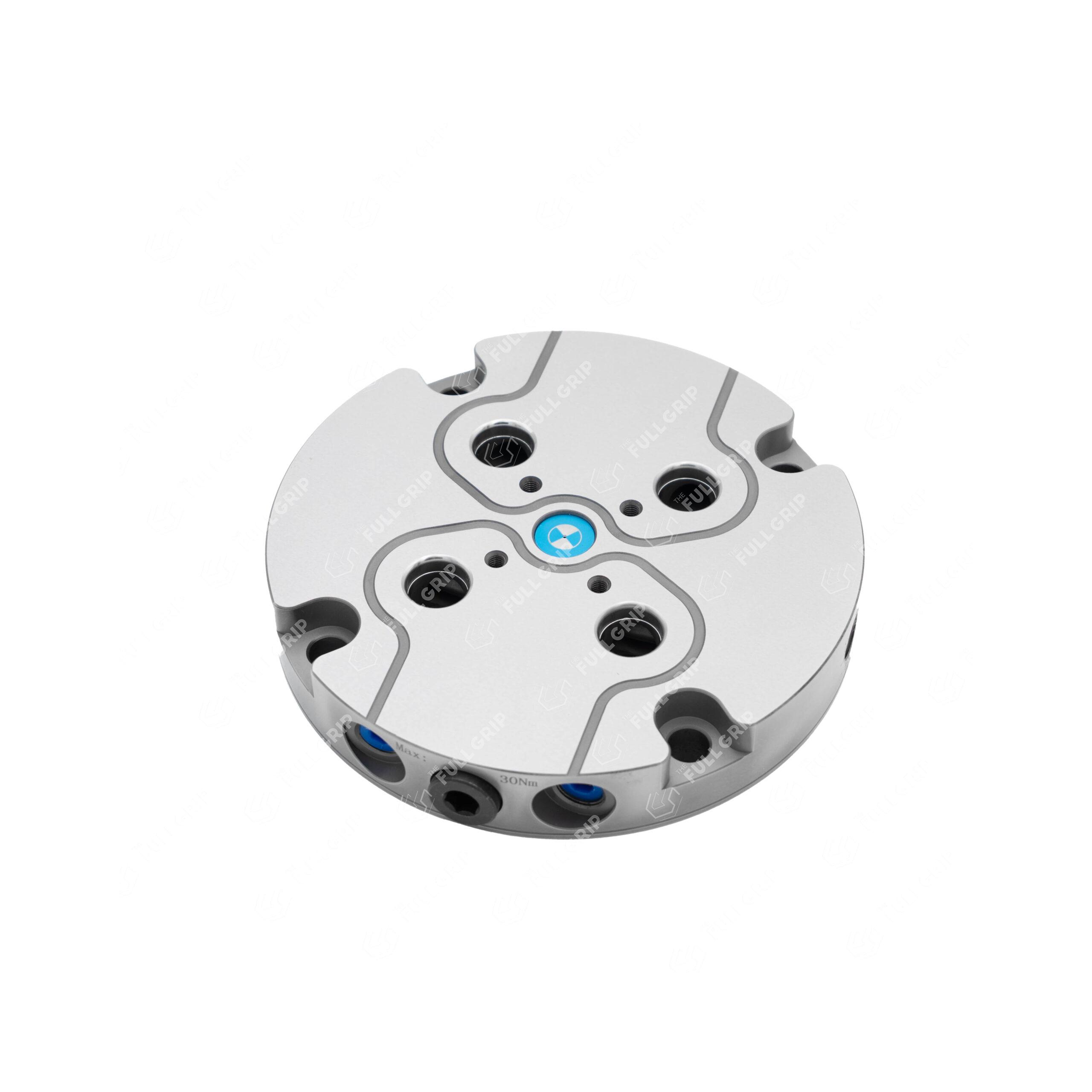

Zero-Point Plate – Round – 157x157x27mm – Grid 52
$649.00

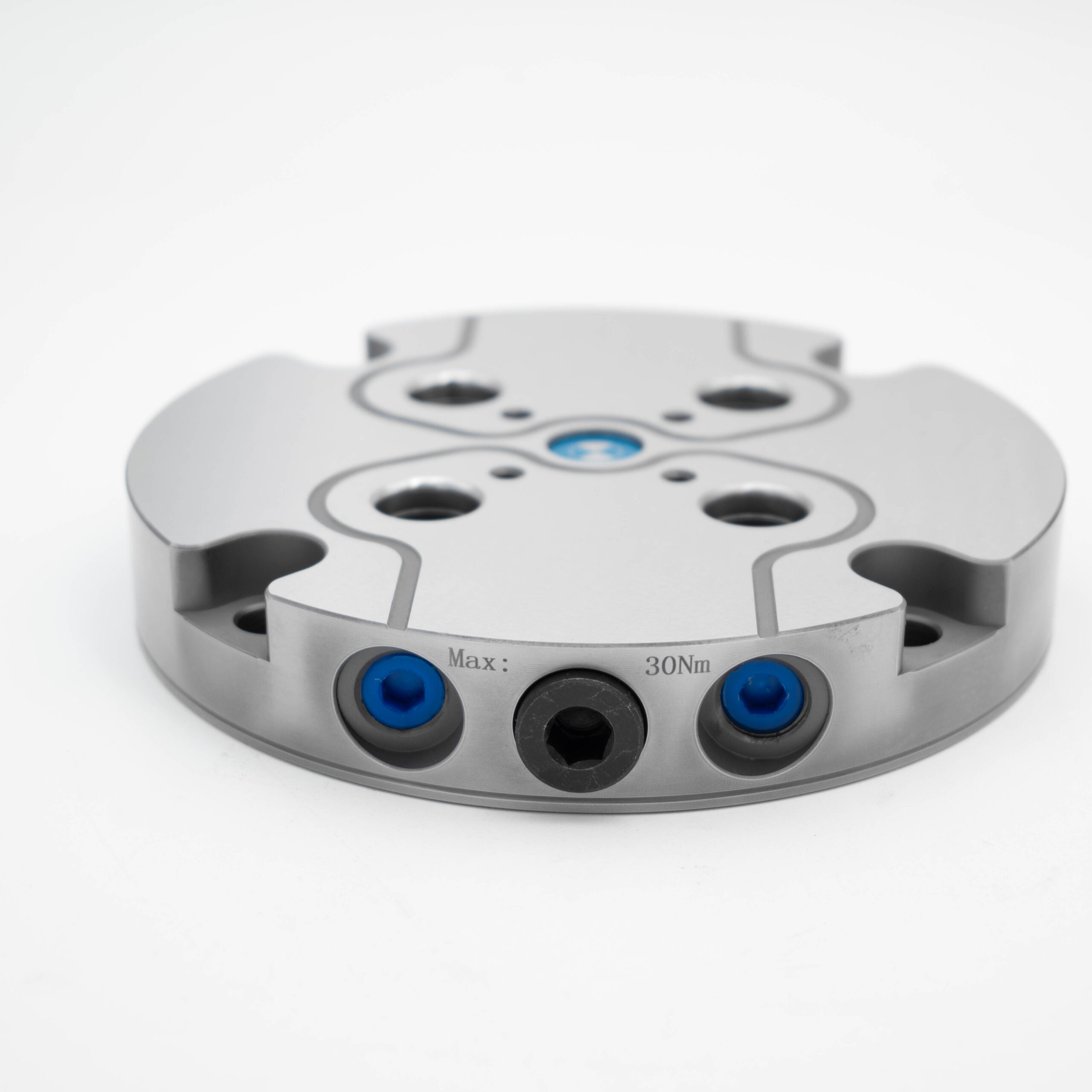

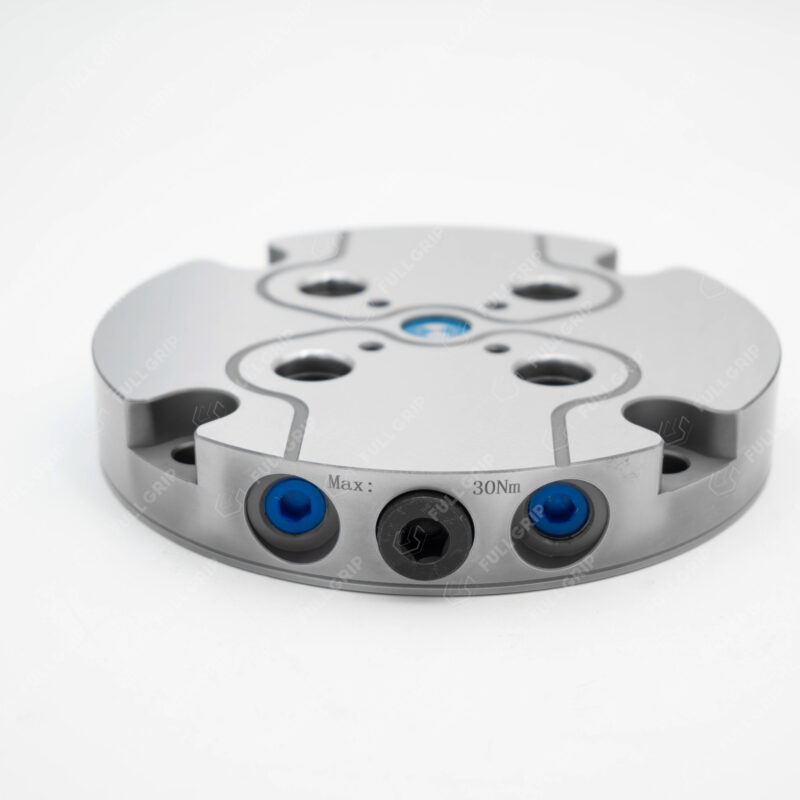

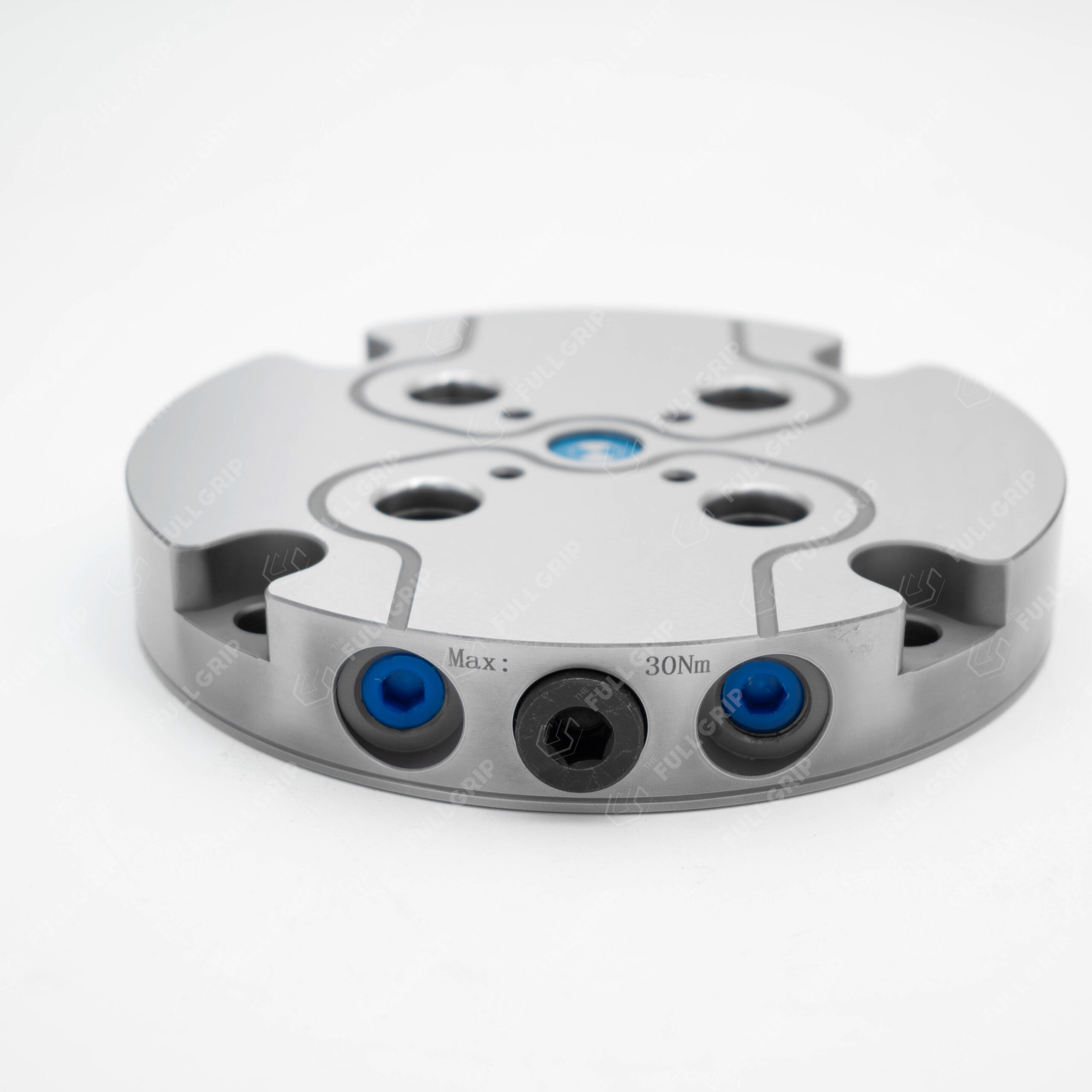

High-Precision Zero-Point Base Plate for CNC Machining
Demensions
Weight

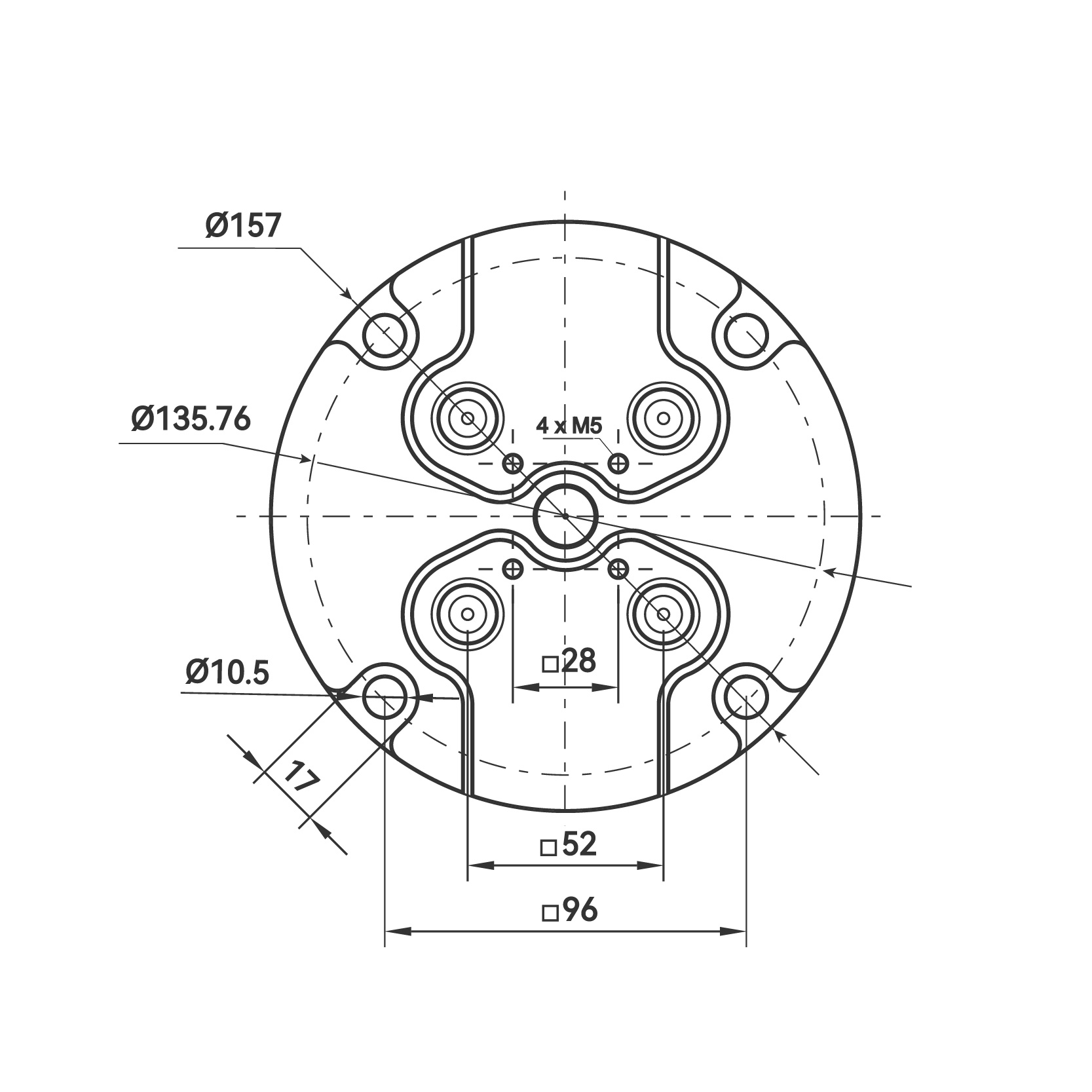

157×157×27 mm
3.8 kg
When repeatability, speed, and reliability matter, the TFG 52 Single Plate delivers. Engineered for precision and built from premium hardened tool steel, this zero-point base plate is a cornerstone of efficient CNC machining workflows. Whether you’re doing high-mix, low-volume production or just need a solid, repeatable base for your fixtures, the TMC 52 gets the job done with minimal fuss.
Designed to work seamlessly with 52 mm zero-point clamping systems, the TMC 52 Single Plate is compatible with a wide range of clamping studs and automation setups. It allows for lightning-fast fixture changes while maintaining sub-5-micron repeatability — keeping your spindles cutting and your team productive.
Product Highlights:
- Precision Repeatability:
≤ 0.005 mm positioning accuracy for consistent machining results across setups. - Robust Build Quality:
Manufactured from hardened tool steel, the plate resists wear and deformation under heavy loads and repeated clamping cycles. - Optimised Design for Fast Changes:
The single-station format allows easy integration into custom jigs or direct mounting on CNC tables. Perfect for both manual setups and automated pallet systems. - Standardised Interface:
Uses the 52 mm zero-point pitch, compatible with all major clamping studs and pull-down systems in the market. - Ready to Install:
Supplied with pre-drilled mounting holes and a precision-ground surface to reduce setup time and ensure maximum contact accuracy. - Versatile Application:
Ideal for vertical and horizontal machining centres, EDM setups, inspection fixtures, and more.
Additional information
| Weight | 3.8 kg |
|---|---|
| Dimensions | 157 × 157 × 27 mm |
| Plate Size | Customised per model (please refer to variant dimensions) |
| Zero-Point Interface | 52 mm standard pitch |
| Material | Hardened tool steel (min. 56 HRC) |
| Surface Finish | Precision ground |
| Repeatability | ≤ 0.005 mm |
| Mounting | Bolt-down through pre-drilled holes |
| Grid System |
