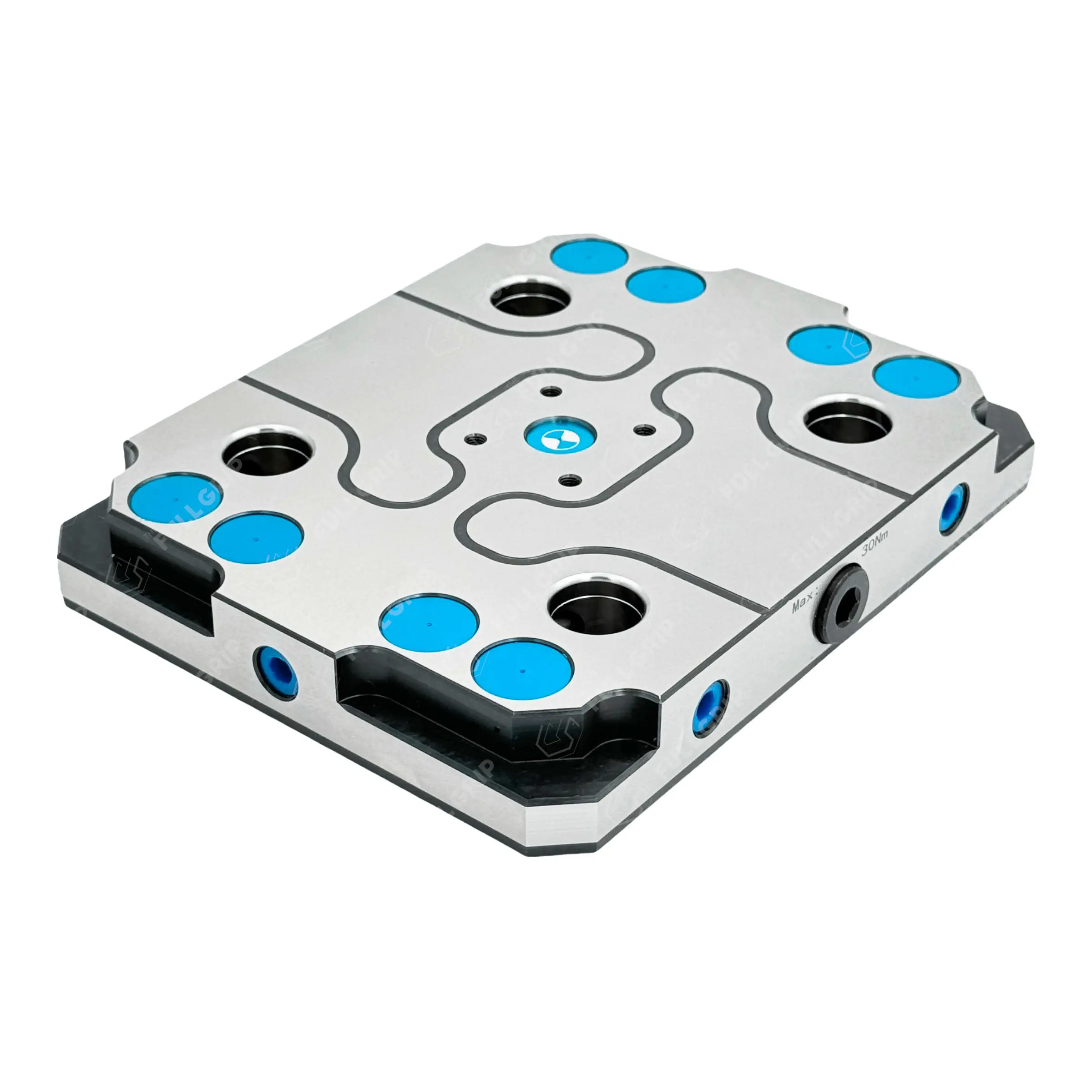

Zero-Point Plate – Rectangle – Ø192x156x27mm – Grid 96
$700.00 incl. GST
Heavy-Duty Zero-Point Clamping Plate for Maximum Holding Power
Dimensions
Weight
Ø192×156×27 mm
5.4 kg
From complex part machining to quick-change fixturing, The Full Grip – 96 Square Plate brings strength, accuracy, and efficiency together in one tough-as-nails package. Trusted by toolmakers, job shops, and advanced manufacturers who don’t compromise on quality.
Description
Key Features:
- Massive Clamping Force:
Designed to maximise surface contact and holding stability for heavier components and high-torque operations. - 96 mm Zero-Point Interface:
Industry-standard layout ensures full compatibility with existing 96 mm pull-stud systems and automation setups. - Premium Material:
Machined from hardened tool steel (min. 56 HRC) for extreme durability and resistance to wear, impact, and repeated loading. - Precision Machined Surfaces:
Top and bottom faces are precision ground for accurate, level mounting and repeatable positioning. - Bolt-On Ready:
Pre-drilled mounting holes for fast installation onto CNC tables, subplates, or custom jigs.
Additional information
| Weight | 5.4 kg |
|---|---|
| Dimensions | 19.2 × 15.6 × 2.7 cm |
| Material | |
| Grid System | |
| Torque | 30Nm |
| Stud Pitch | Ø20/96mm |
| Locking Force | 18KN (4 Rivet) |
| Repeatability | |
| Mounting Bores | 4 holes, Ø12.5mm |
| Precision Locating Holes | 4 holes, Ø12G7 |
| T-Slot Spacing | 100mm, 150mm, 50mm |
