Zero-Point Combo Plate – 52 / 96 Grid – Square – 156x156x27mm
$1,080.00
Modular Zero-Point Base Plate for Mixed-System Machining
Demensions
Weight

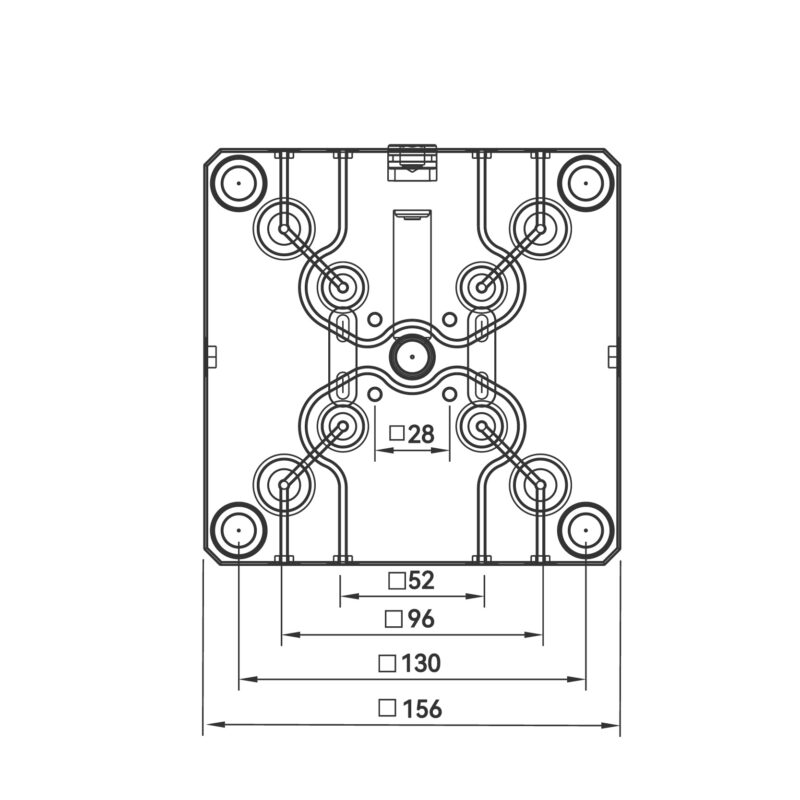

156×156×27 mm
4.3 kg

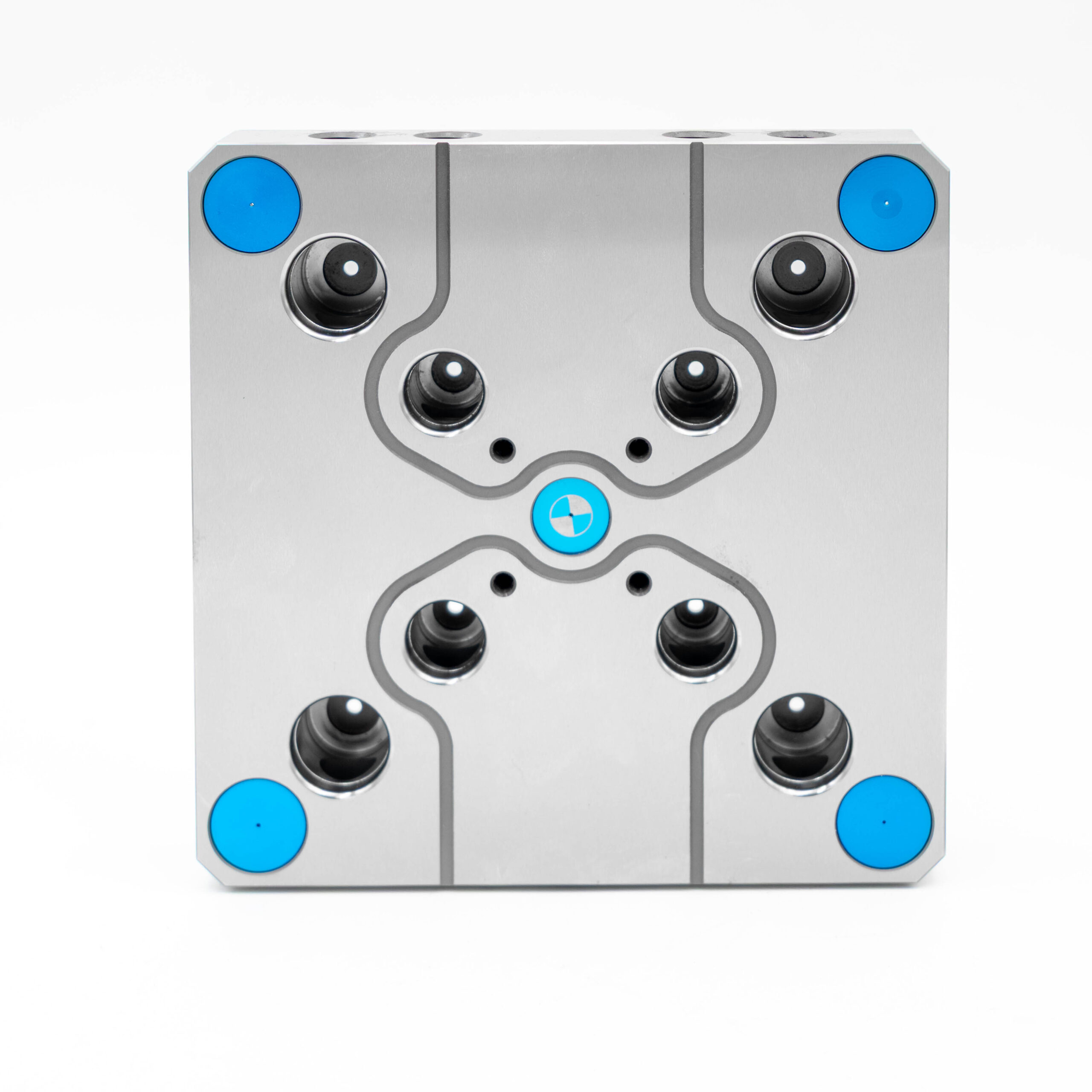

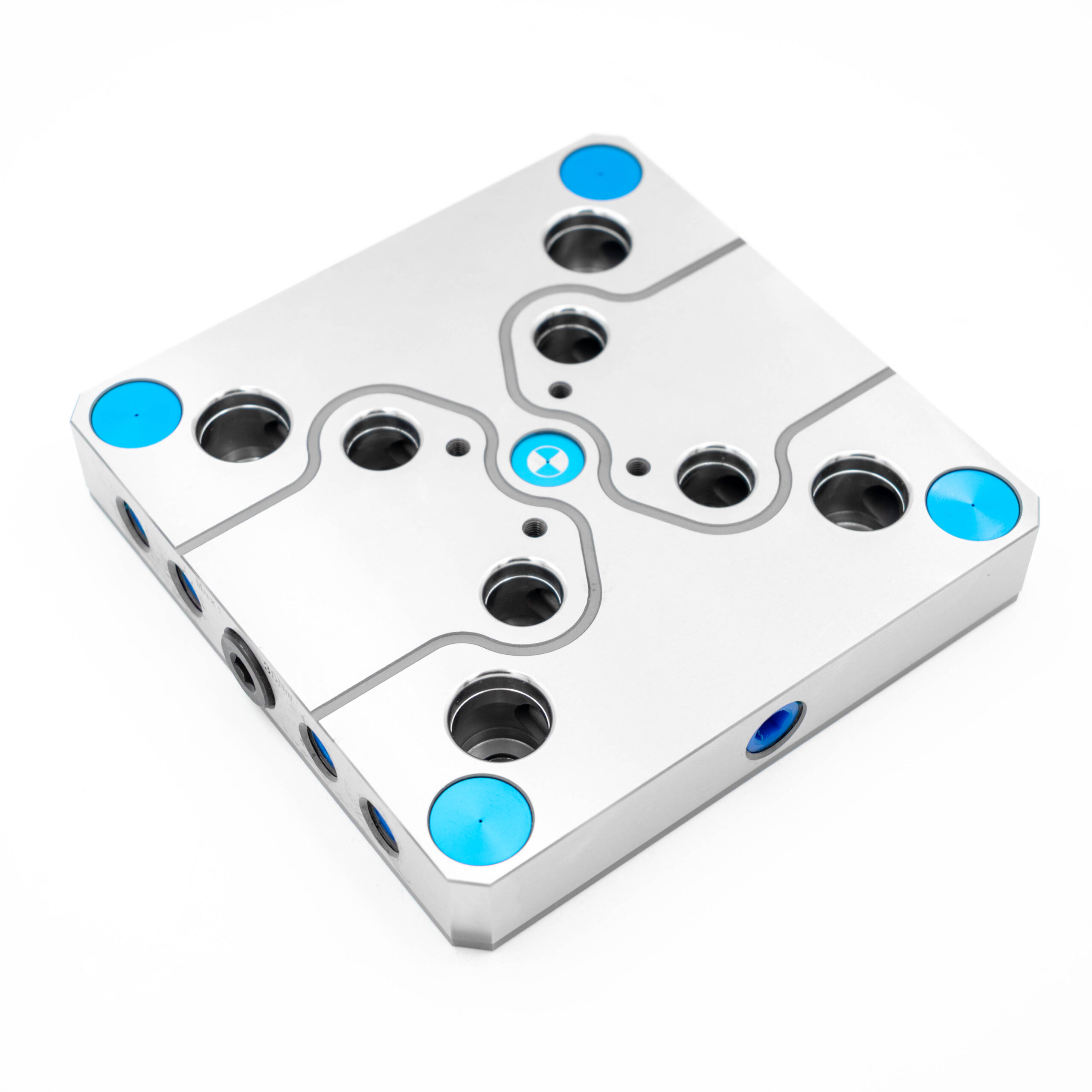

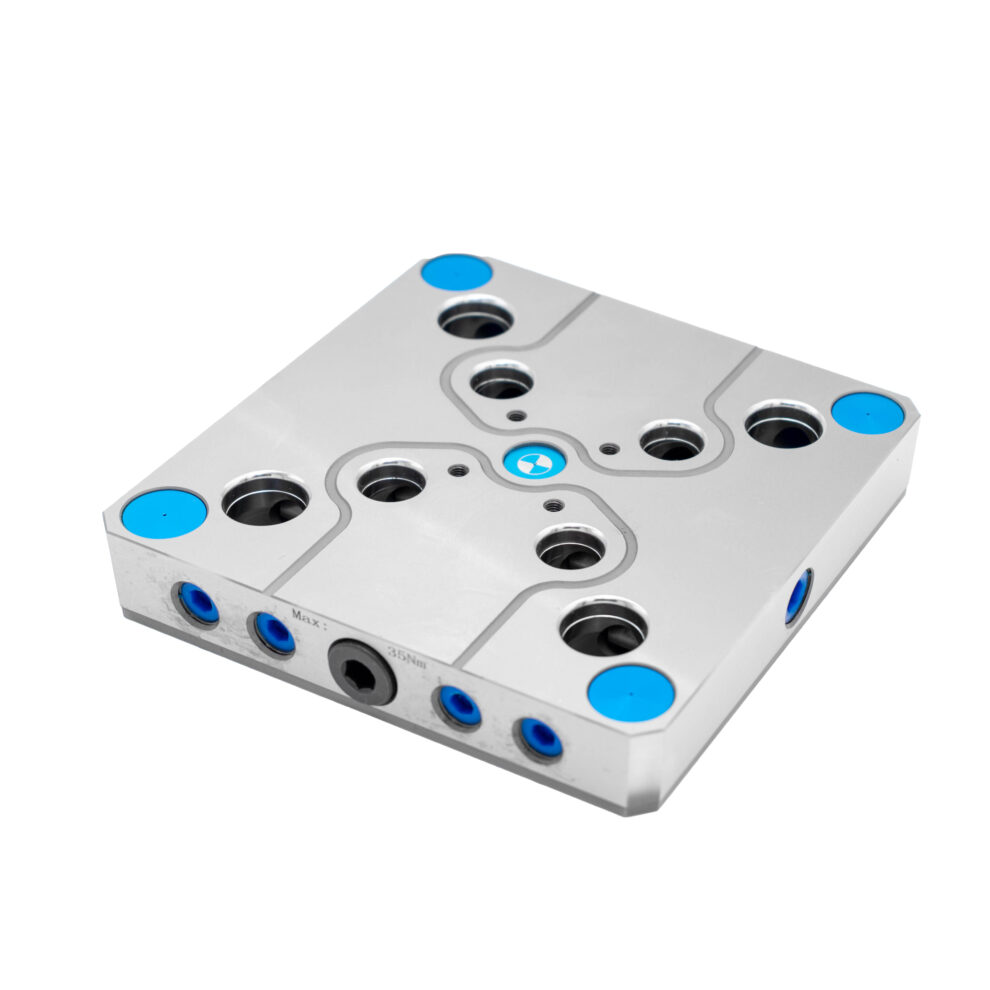

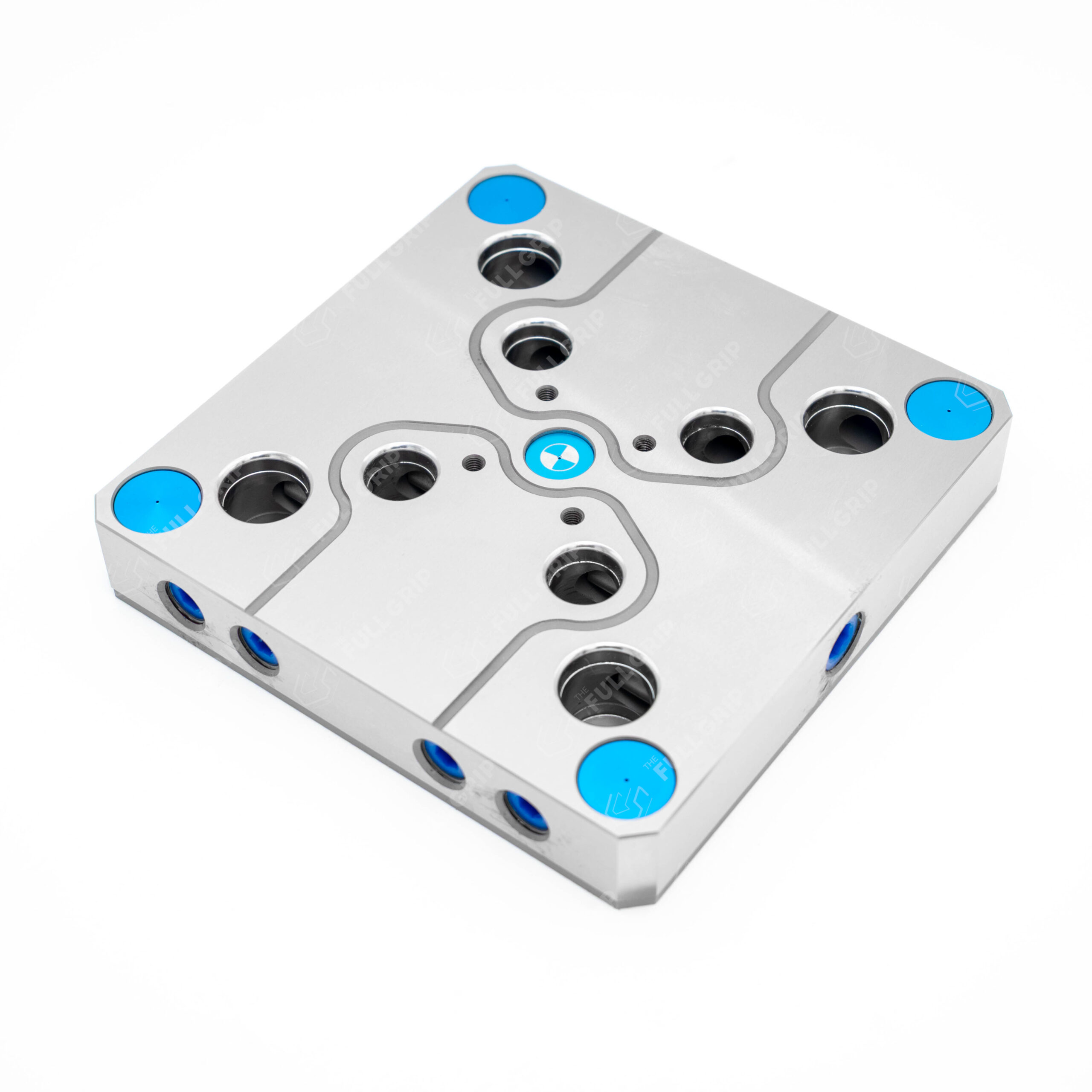

The Full Grip – 52 / 96 Combi Plate / Square is the perfect all-rounder for workshops looking to unify their fixturing without locking into a single standard. Designed to support both 52 mm and 96 mm zero-point clamping systems in one compact, square-format base, this plate is ideal for CNC setups where versatility, rigidity, and repeatability are critical.
Whether you’re switching between light-duty and heavy-duty jobs or running a hybrid fixture setup, this combi plate gives you the freedom to adapt without sacrificing speed or accuracy.
Key Features:
- Dual Zero-Point Compatibility:
Built-in locations for both 52 mm and 96 mm pull-stud systems, giving you ultimate flexibility in fixture selection and job setup. - Square Format Advantage:
Balanced layout makes it easy to align on machine tables or integrate into grid plates and modular tombstones. - Precision Machined:
Top and bottom faces are ground to ensure parallelism, flatness, and consistent repeatability (≤ 0.005 mm). - Durable Build:
Milled from hardened tool steel (≥ 56 HRC), tough enough to handle frequent fixture changes, high clamping loads, and demanding shop conditions. - Ready for Mounting:

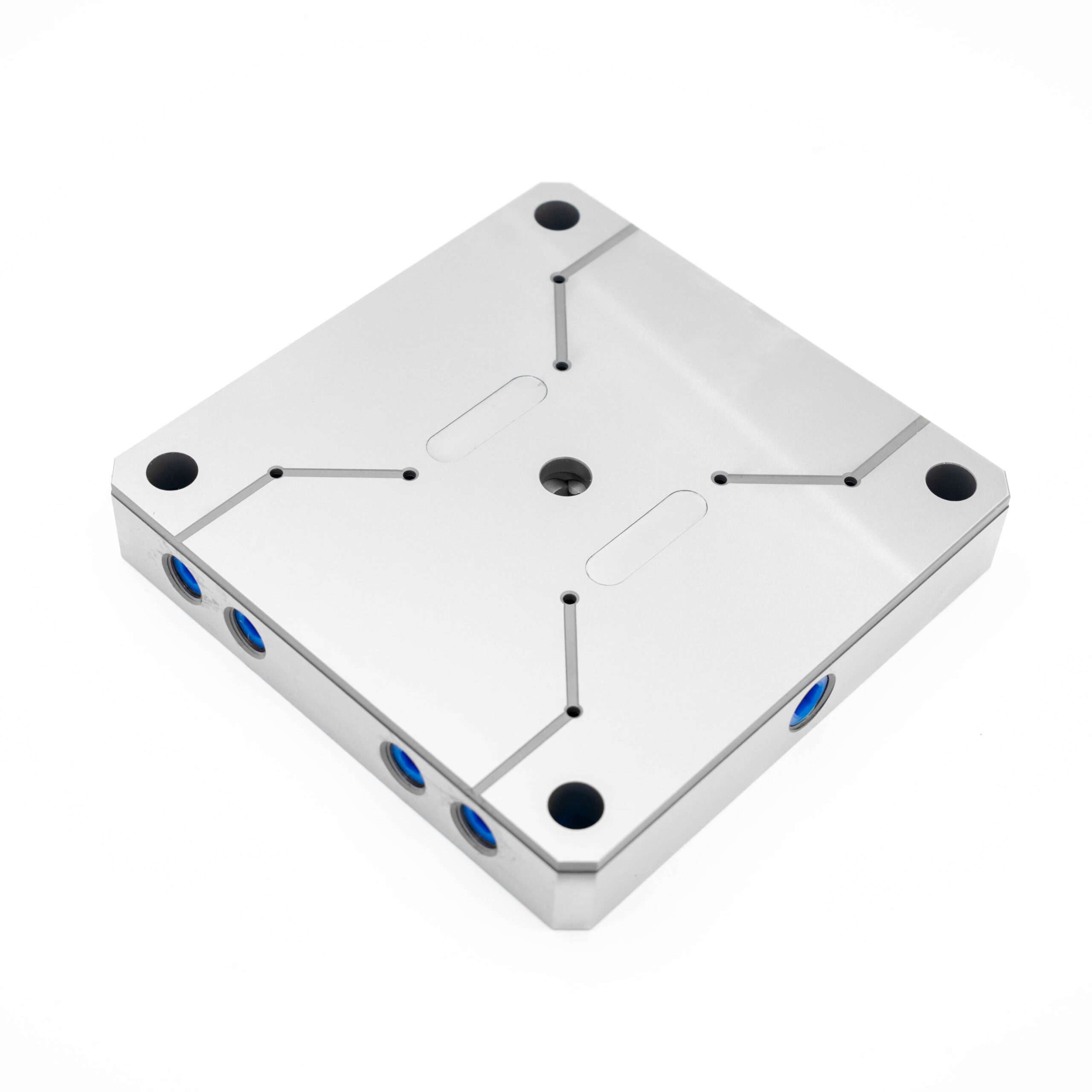

Supplied with pre-drilled bolt holes and alignment features for fast installation on CNC tables or subplates. - Optimised for Mixed Workflows:
Perfect for machine shops running varied jobs across multiple platforms — no retooling required between fixture systems.
Additional information
| Weight | 4.3 kg |
|---|---|
| Dimensions | 156 × 156 × 27 mm |
| Material | High-quality martensitic tool steel (HRC 55–58) |
| Mounting | Bolt-down, standard hole pattern |
| Grid System |
