Zero-Point Combo Plate – 52 / 96 Grid – Rectangle – 192x156x27mm
$1,080.00
Dual-System Zero-Point Base Plate for Maximum Flexibility and Control
Demensions
Weight

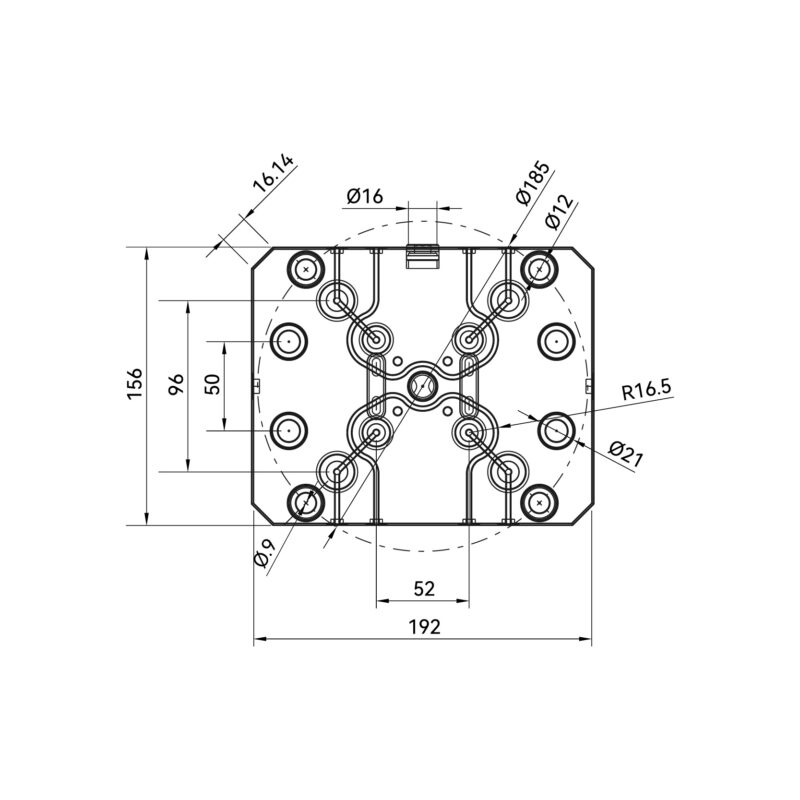

192×156× 27 mm
5.3kg

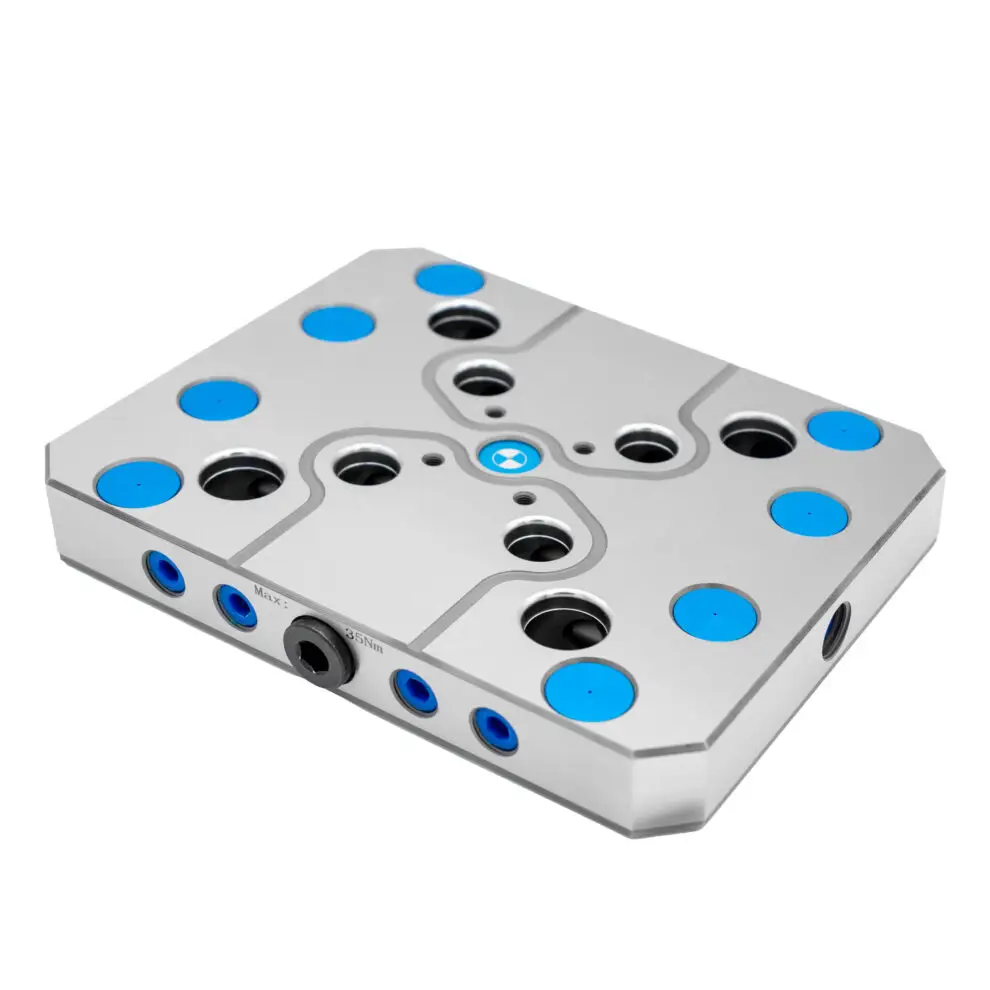

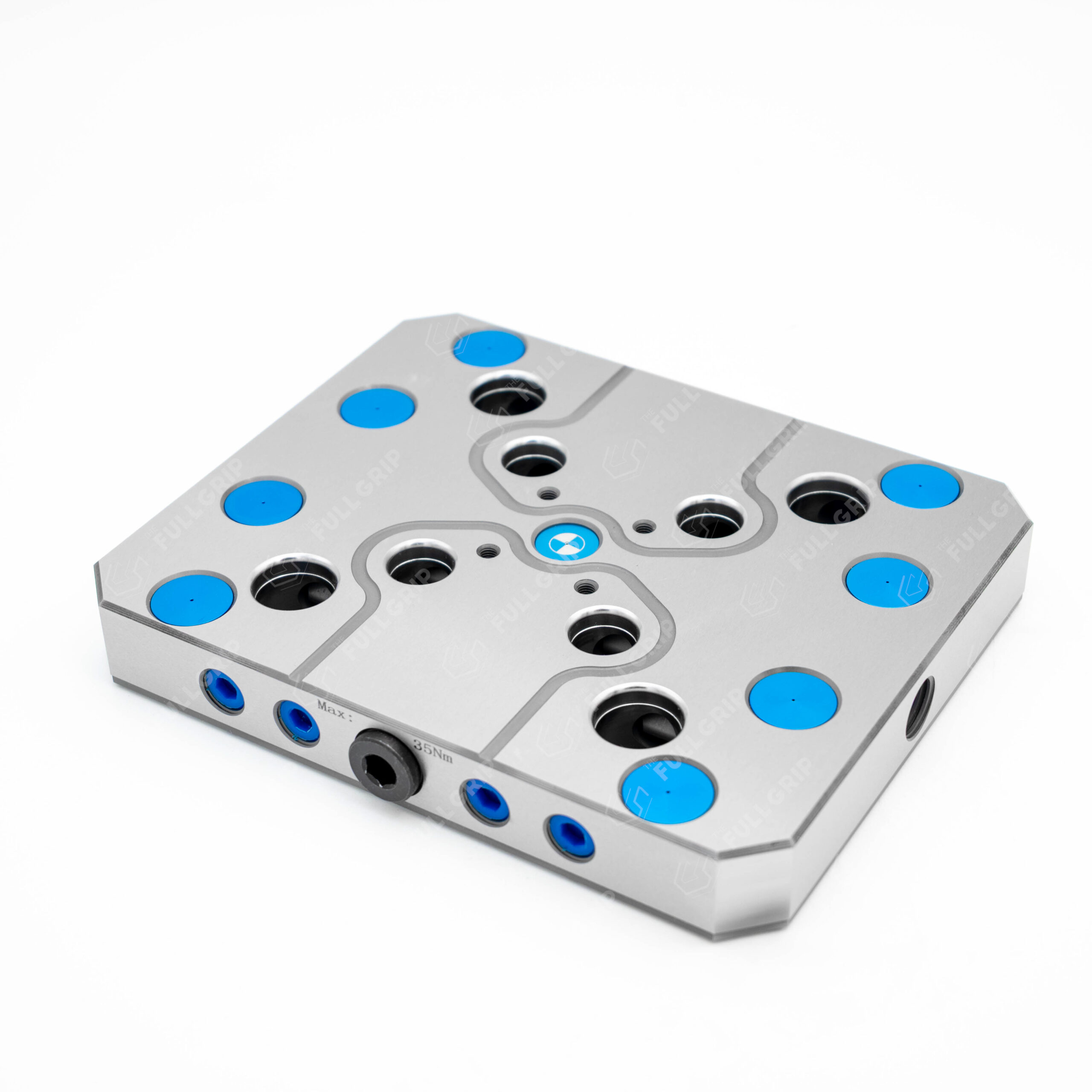

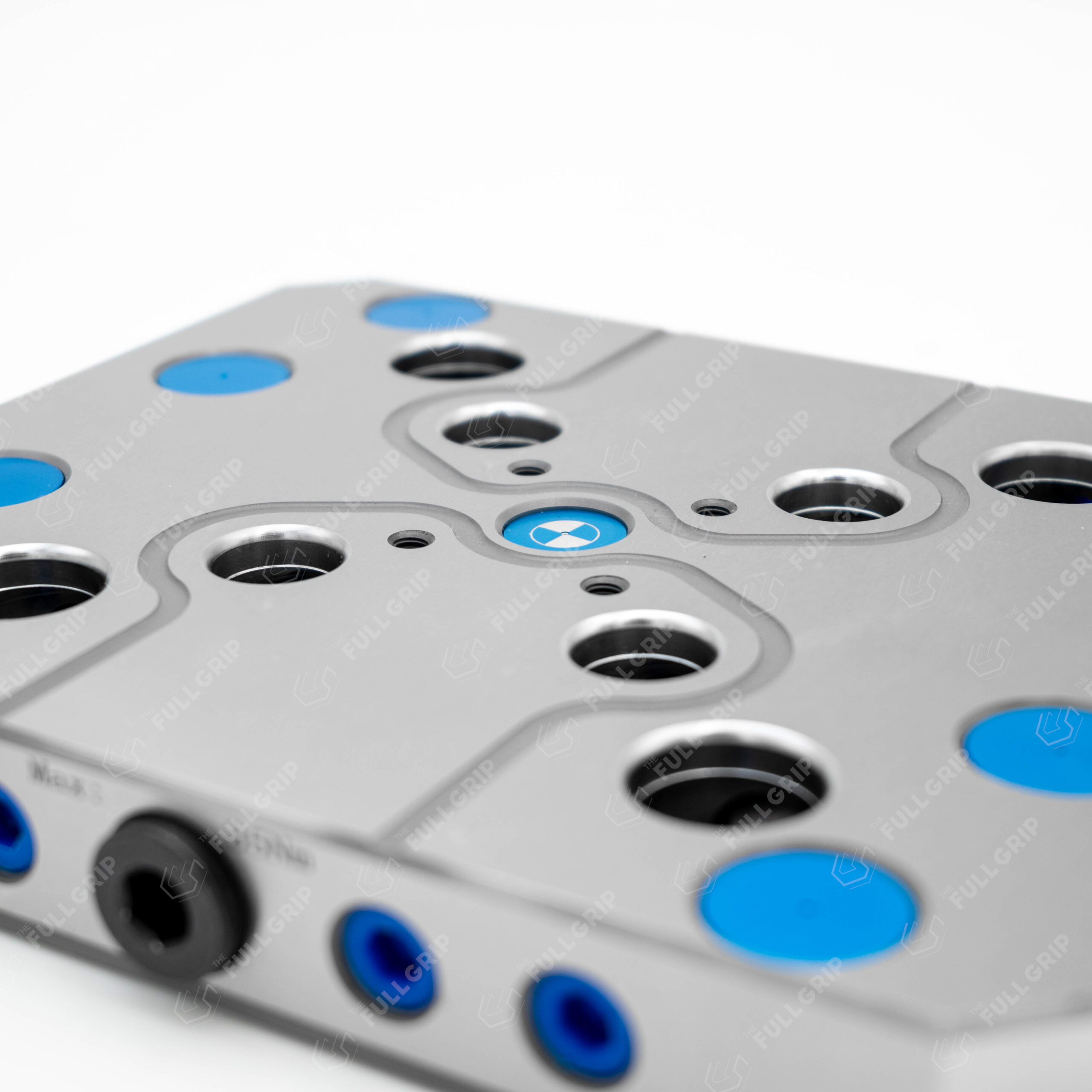

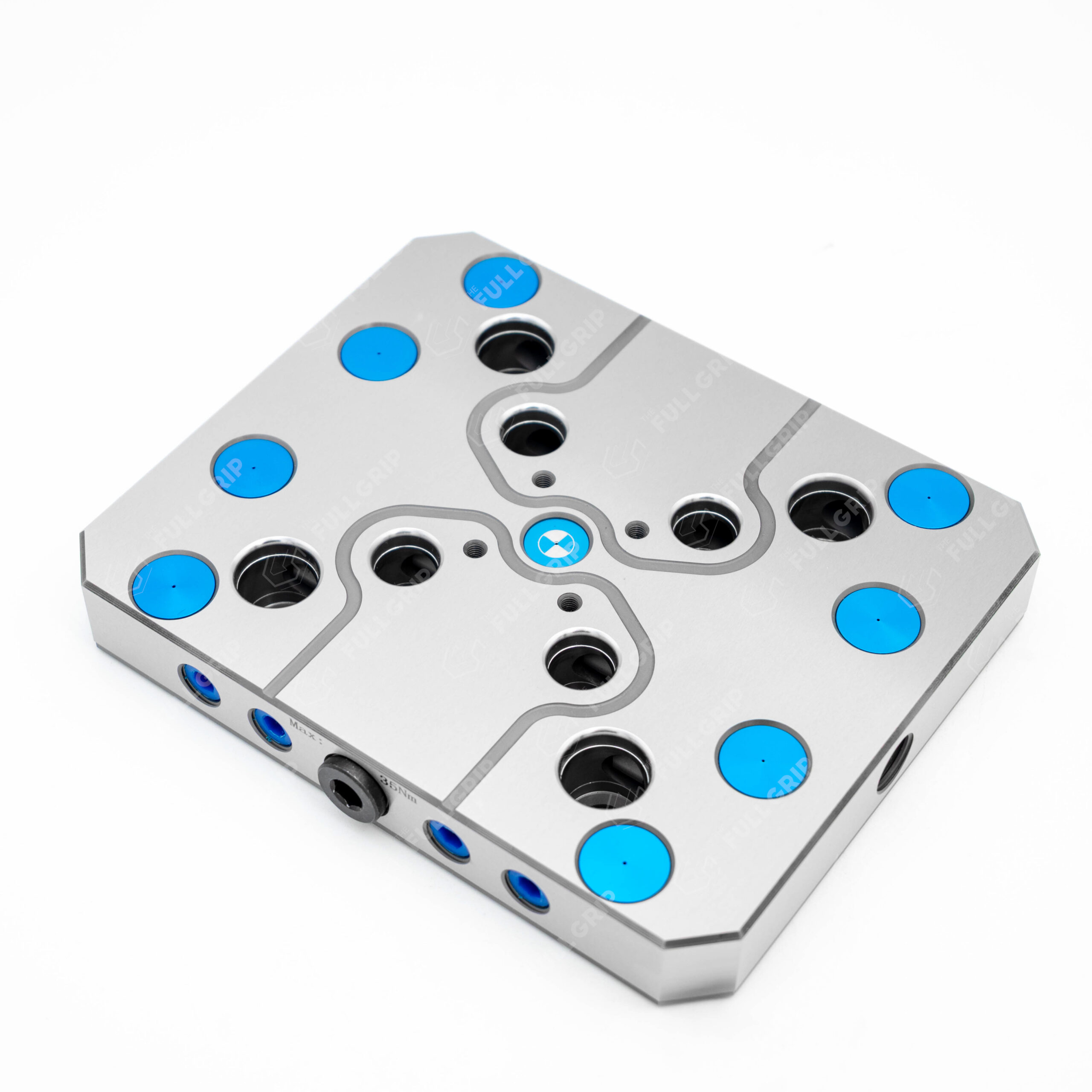

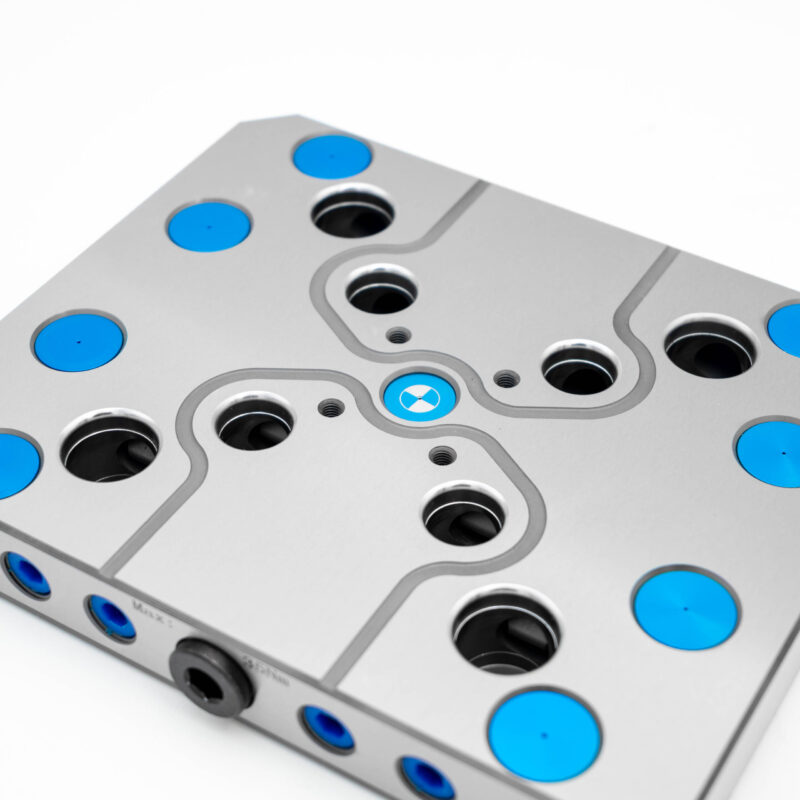

When adaptability meets precision, you get The Full Grip – 52 / 96 Combo Plate / Twin Base. Designed for workshops that run both 52 mm and 96 mm zero-point systems, this hybrid base plate gives you unmatched flexibility in your fixturing setup — perfect for shops doing high-mix work, quick changeovers, or transitioning between light and heavy-duty clamping.
Featuring two integrated zero-point stations — one 52 mm and one 96 mm — side by side, this twin base allows operators to mount different fixtures or parts simultaneously. Whether you’re clamping small precision components or larger, heavy-duty workpieces, The Full Grip gives you the power to do both without compromise.
Features:
- Dual Interface System:
One plate, two standards — use both 52 mm and 96 mm pull-stud systems on the same base without retooling or downtime. - Twin Base Format:
Two clamping zones for parallel setups — ideal for running mixed jobs, splitting workflows, or simply staying ready for anything. - Hardened Tool Steel Construction:
Built from premium-grade tool steel (min. 56 HRC) to handle repeated clamping cycles, high loads, and harsh shop conditions. - Precision Ground Surfaces:
Top and bottom faces are ground flat for tight repeatability (≤ 0.005 mm) and easy integration into any CNC setup. - Quick Mounting:
Comes pre-drilled for bolt-down installation on machine tables, tombstones, subplates, or pallets. - Maximum Productivity:
Speeds up fixture changes, reduces idle time, and allows flexible part scheduling on one base plate.
Additional information
| Weight | 5.3 kg |
|---|---|
| Dimensions | 192 × 156 × 27 mm |
| Plate Format | Twin base (side-by-side layout) |
| Material | Hardened tool steel (min. 56 HRC) |
| Surface Finish | Ground |
| Repeatability | ≤ 0.005 mm |
| Mounting | Pre-drilled bolt holes |
| Applications | CNC machining centres, rotary tables, pallet changers, automated work cells |
| Grid System |
