TFG Vice for Grid 96 – 125x310mm – Removable Jaws
$1,729.00
125 x 310 mm | Removable Jaws
Extended-Range Vice for Large Part Machining with True Centerline Accuracy

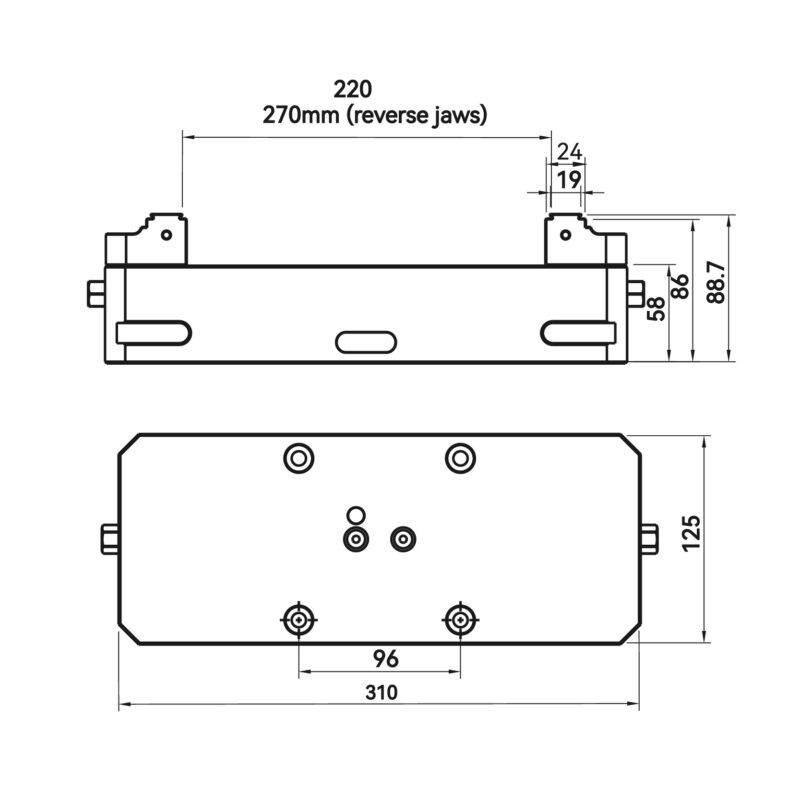

Demensions
Clamping Range
Weight
310 × 125 × 88.7 mm
0-270mm
15.6 kg
When your parts get bigger, your workholding needs to keep up. The Full Grip – Self Centering Vice – 125 x 310 is the largest model in our precision vice lineup, offering a massive 270 mm clamping range without compromising accuracy or rigidity. Designed for use in demanding 3- and 5-axis environments, this vice centers every part automatically, speeding up setup and ensuring consistent machining results.
With 125 mm wide removable jaws, this vice accommodates both hardened steel jaws for everyday use and soft jaws for delicate or custom parts — making it the ideal solution for high-mix, high-precision production.
Key Features:
- Massive 270 mm Clamping Range:
Perfect for large components or long, symmetrical parts that require centered positioning for balanced machining. - True Self-Centering Motion:
Both jaws move simultaneously toward the center, eliminating manual adjustments and maintaining perfect symmetry. - Removable, Interchangeable Jaws:
Switch between hardened steel jaws, soft jaws, or custom profiles in seconds — ideal for flexible fixture setups and short lead times. - Engineered for Strength:
Hardened tool steel construction ensures stability and repeatability, even under aggressive cutting conditions. - Tight Tolerance Precision:
Ground guides and jaw faces hold repeatability to ≤ 0.01 mm, ensuring consistent setup across part runs. - Modular & Zero-Point Compatible:
Can be mounted via bolt holes or adapted to zero-point clamping systems for rapid changeovers and fixture integration.
Additional information
| Dimensions | 310 × 125 × 88.7 mm |
|---|---|
| Clamping Range | 0-270 mm |
| Grid System | |
| Material | Tool steel (HRC 45–55) |
