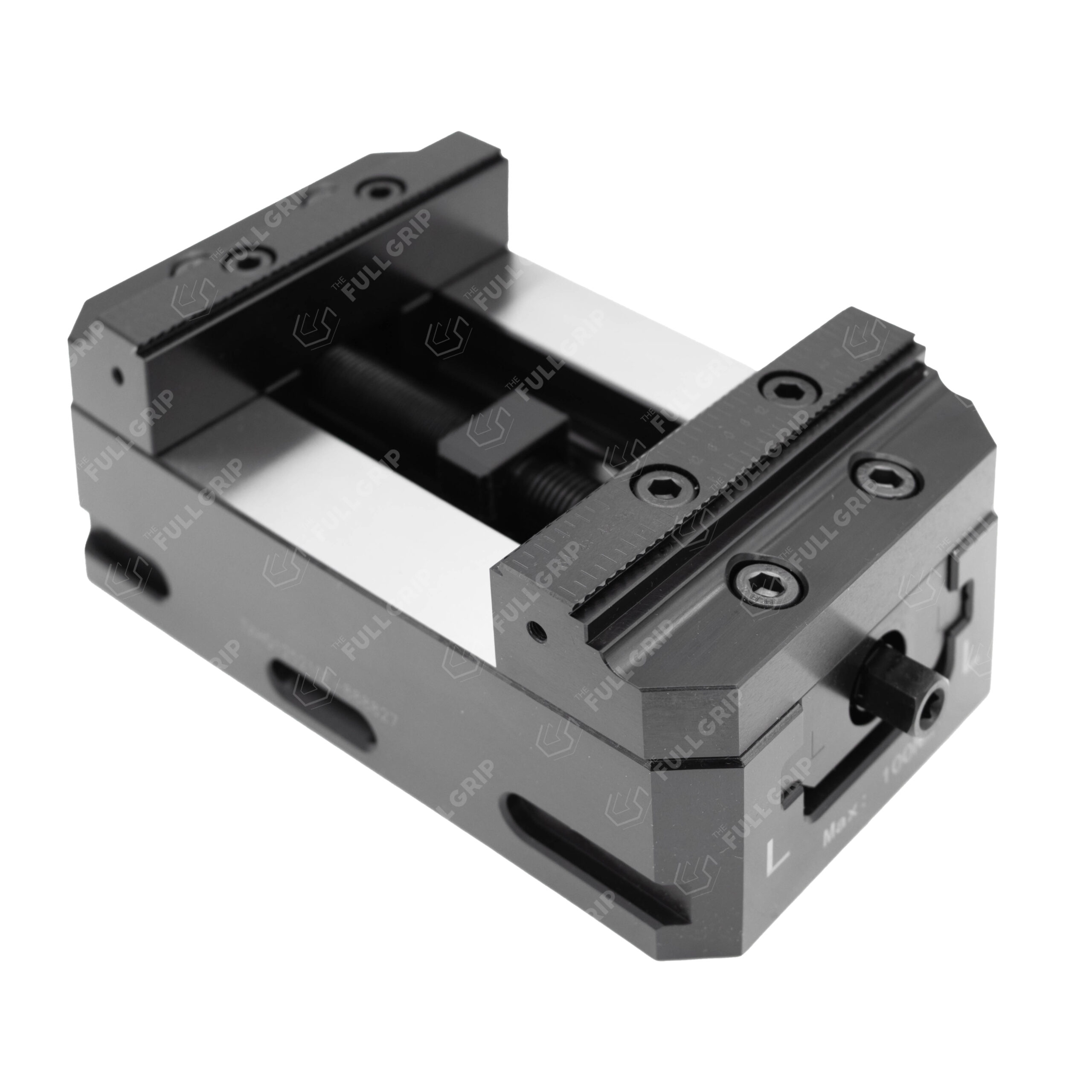

TFG Vice for Grid 96 – 125x210mm – Removable Jaws
$1,049.00
TFG Vice for Grid 96 – 125x260mm – Removable Jaws
$1,289.00
125 x 260 mm | Removable Jaws
Large-Capacity Centerline Clamping for Demanding CNC Workflows

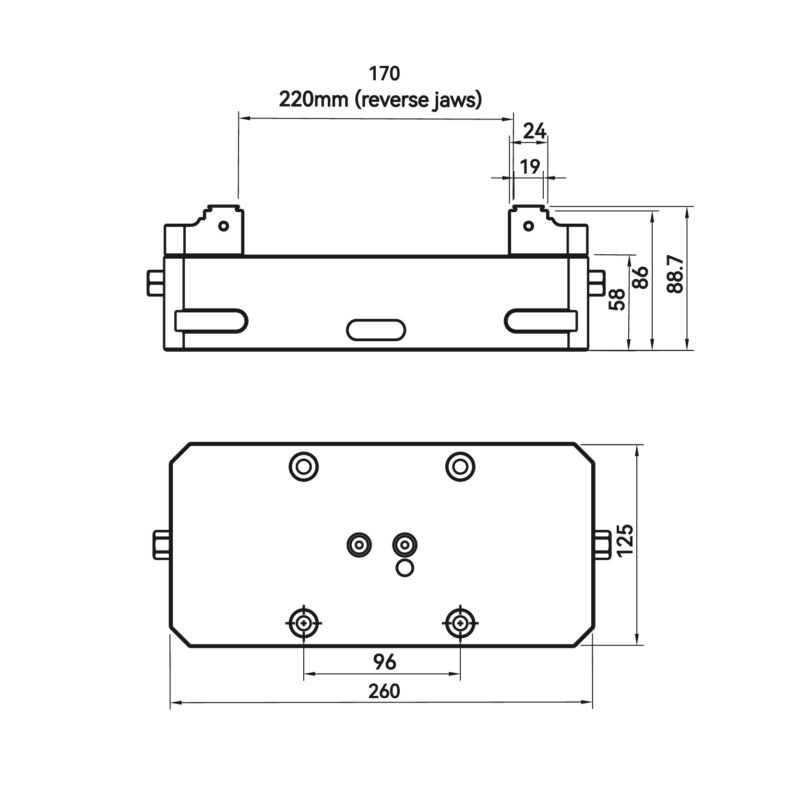

Demensions
Clamping Range
Weight
260 × 125 × 88.7 mm
0-220 mm
13.6 kg

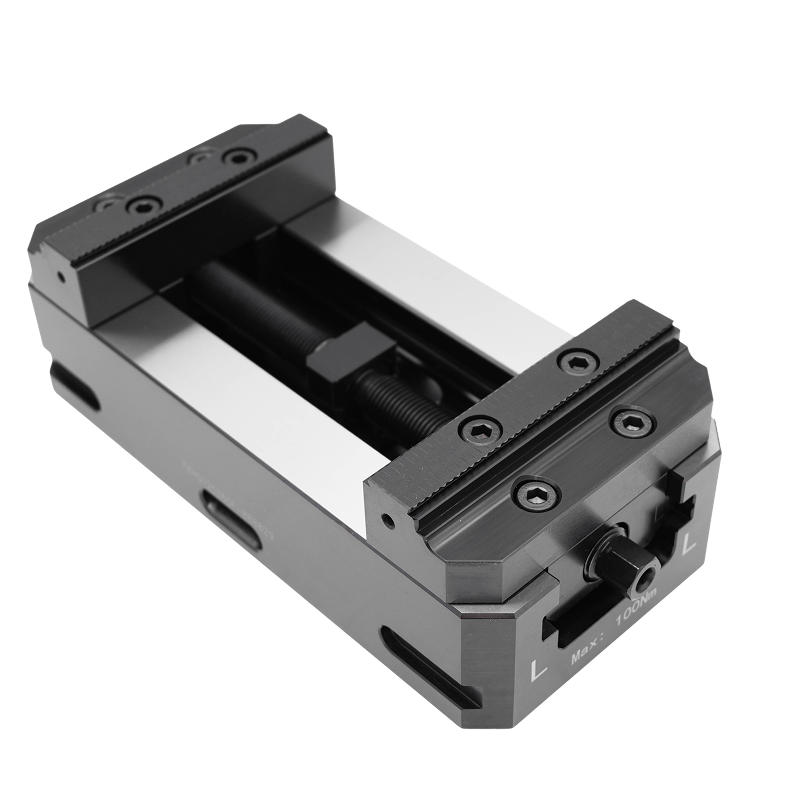

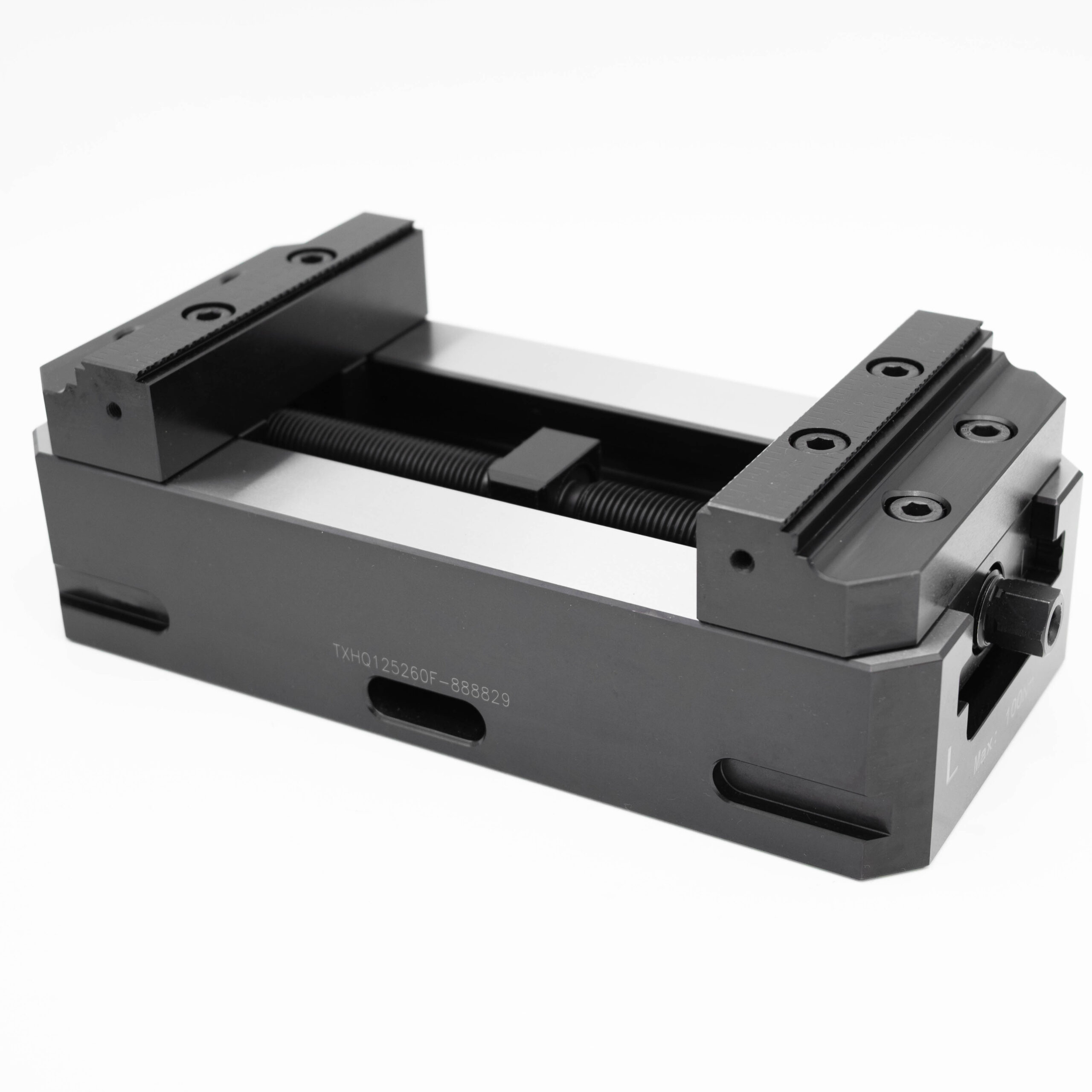

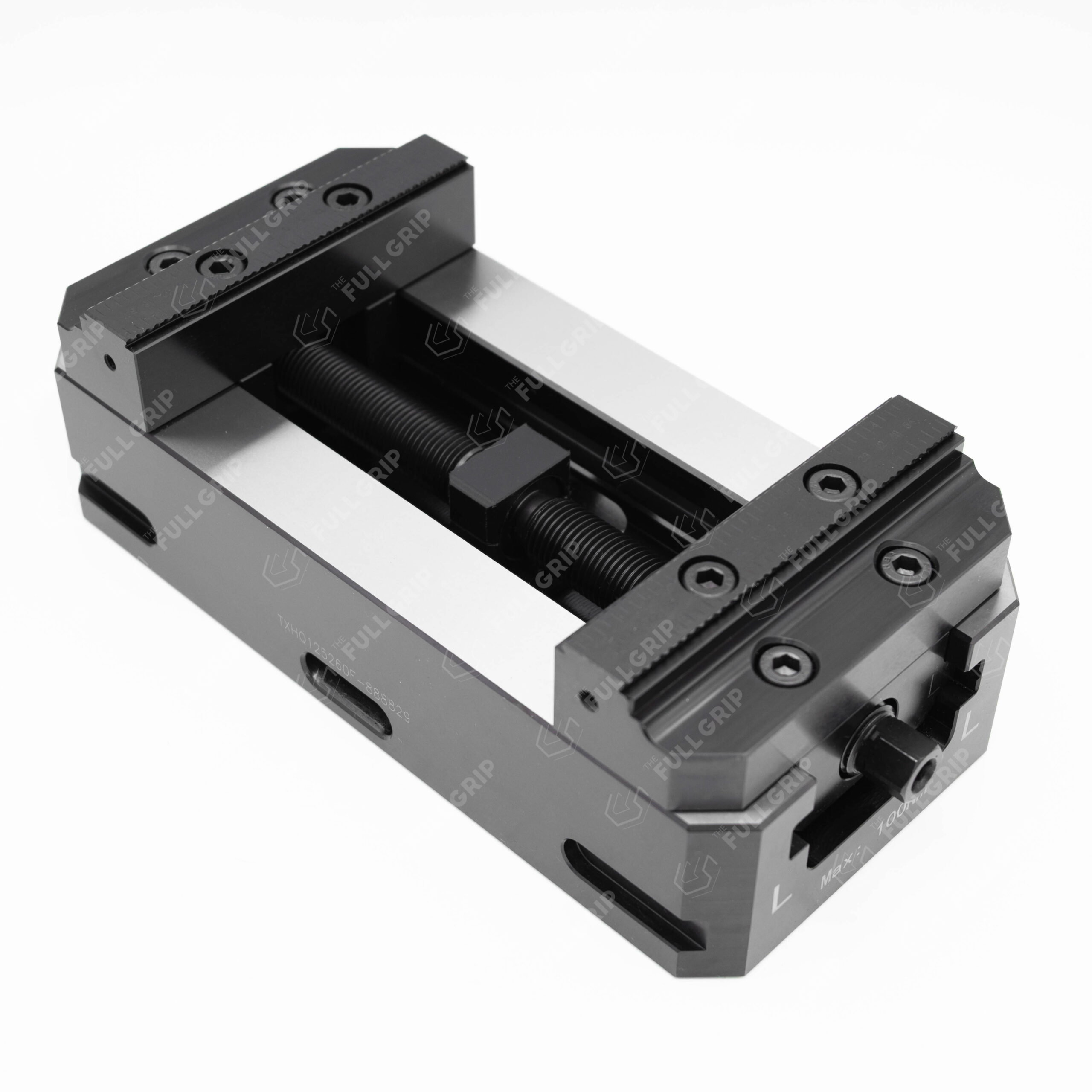

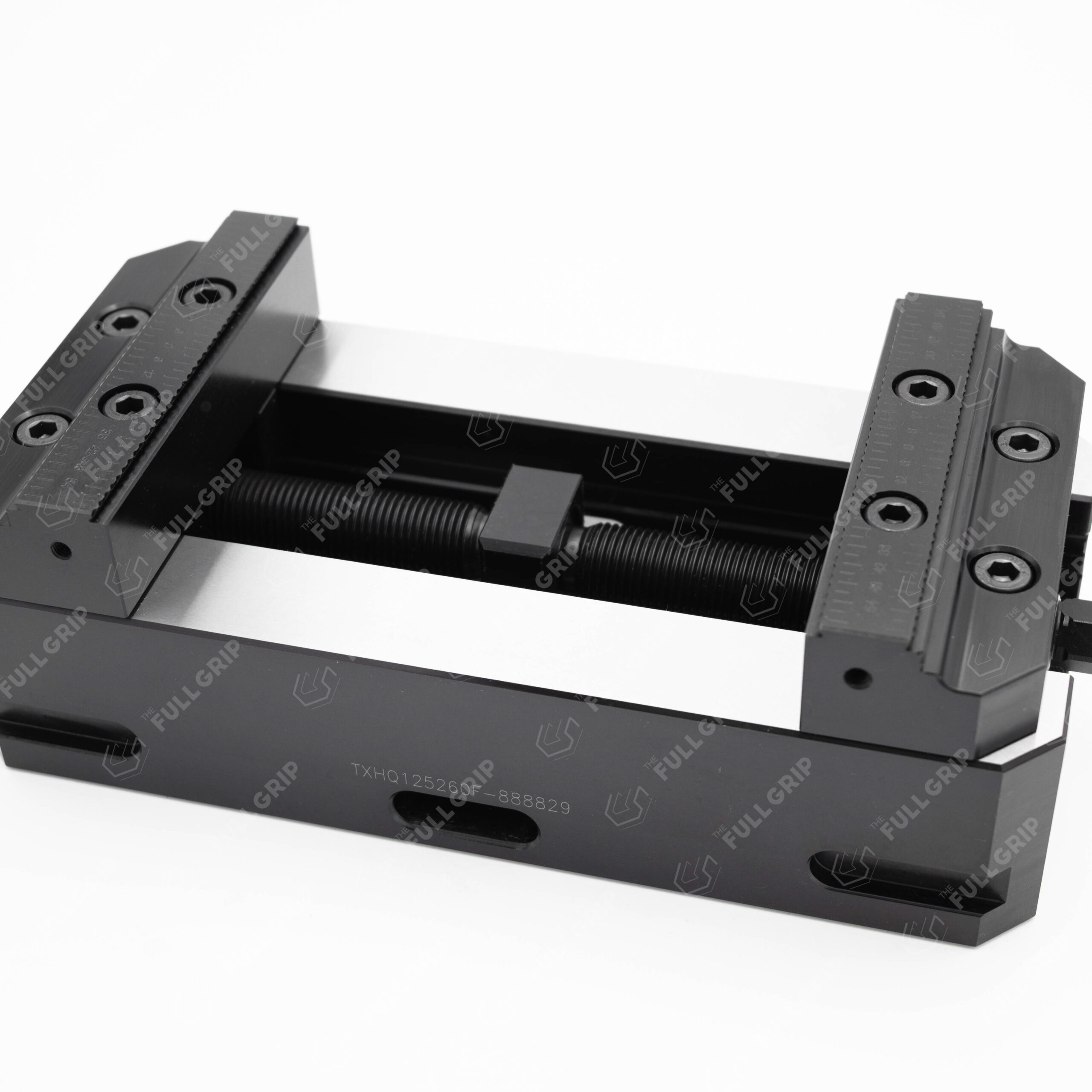

The Full Grip – Self Centering Vice – 125 x 260 offers exceptional clamping range and precision for advanced 3-axis and 5-axis machining operations. With a 260 mm capacity and 125 mm jaw width, this model is purpose-built for larger workpieces, longer setups, and jobs that require absolute centerline accuracy with minimal setup time.
Engineered for rigidity and repeatability, the vice features removable jaws that can be swapped quickly for soft jaws, custom profiles, or special-purpose inserts — making it an ideal choice for job shops, automation cells, and production environments with varying part sizes.
Key Features:
- Wide Clamping Range (0–220 mm):
Accommodates larger parts or longer workpieces without the need for jaw extensions or repositioning. - Self-Centering Mechanism:

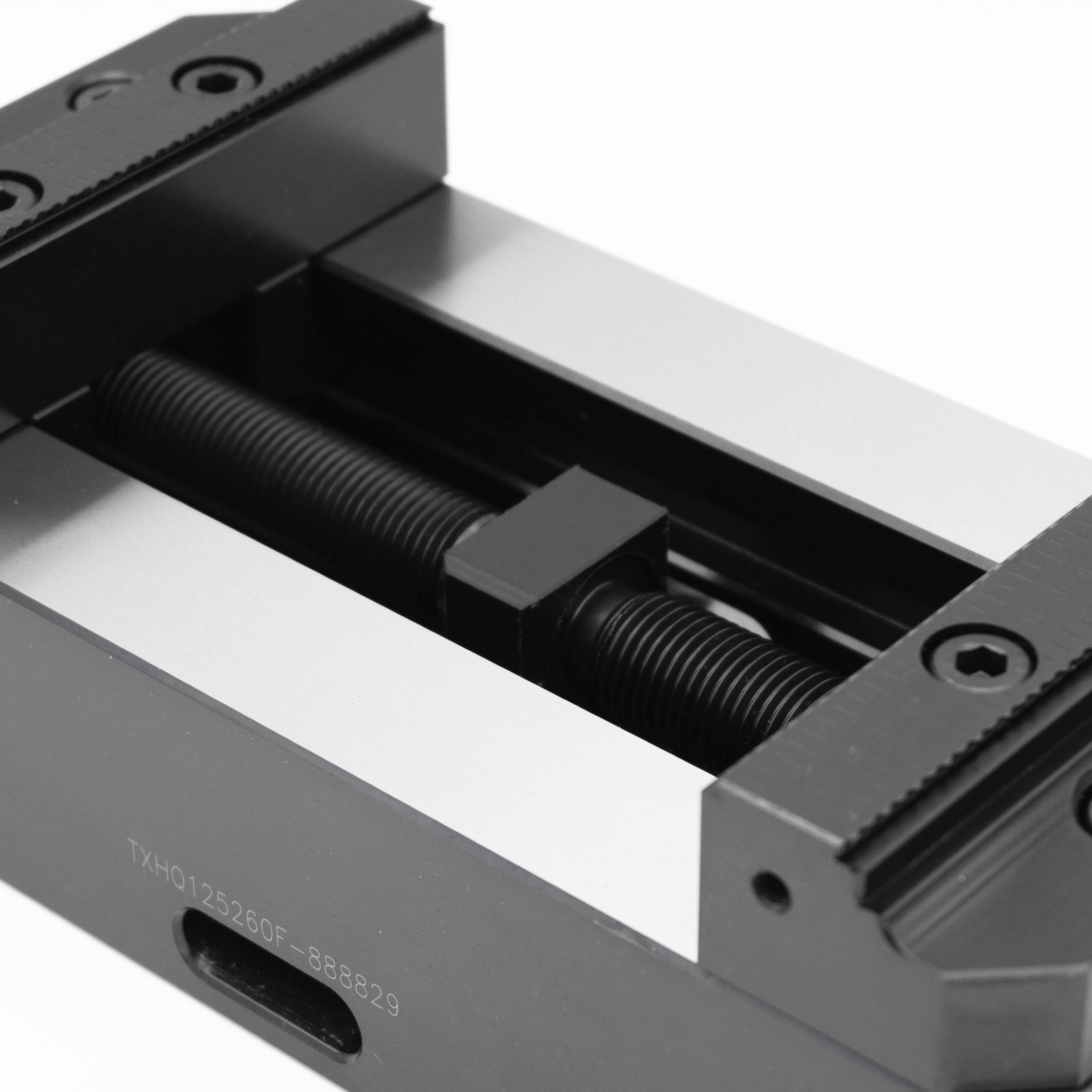

Dual-moving jaws maintain part symmetry on the vice’s centerline — ideal for round, square, or symmetrical components, especially in 5-axis machining. - Removable & Interchangeable Jaws:
Comes with hardened steel jaws and supports quick-change soft jaws or custom options for faster workflow transitions. - Built for Rigidity:
Precision-ground and made from hardened tool steel to deliver excellent resistance to deflection and vibration. - High Accuracy & Repeatability:
Ground ways and centerline tolerance to ≤ 0.01 mm ensure consistent results across repeat jobs or automated tool changes. - Zero-Point Ready:
Compatible with The Full Grip zero-point studs or bolt-down mounting — perfect for flexible fixture libraries and fast changeovers.
Additional information
| Weight | 13.6 kg |
|---|---|
| Dimensions | 260 × 125 × 88.7 mm |
| Material | Tool steel (HRC 45–55) |
| Clamping Range | 0-220 mm |
| Grid System |
