TFG Vice for Grid 96 - 125x260mm - Removable Jaws
$1,289.00

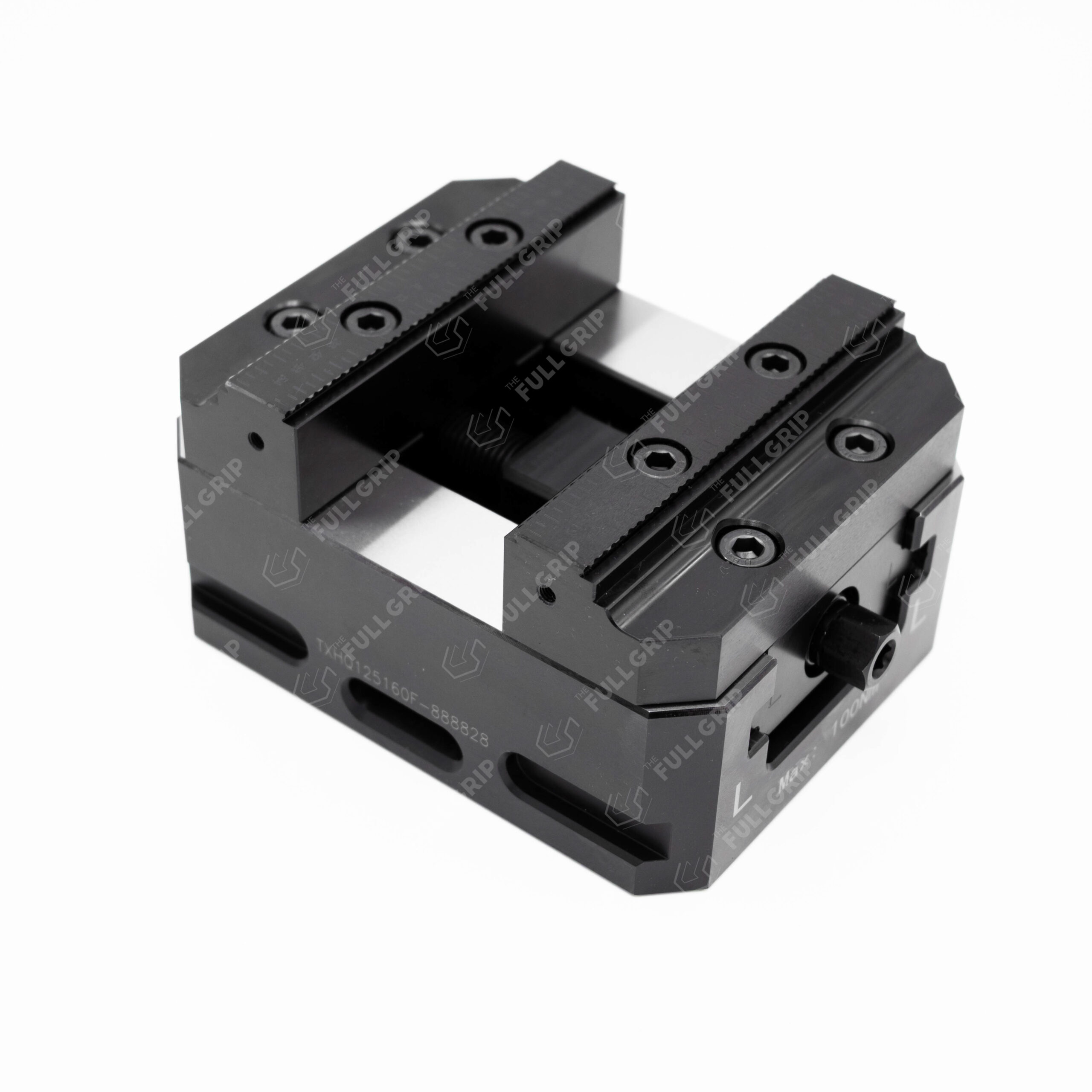

TFG Vice for Grid 96 – 125x160mm – Removable Jaws
$890.00
TFG Vice for Grid 96 – 125x210mm – Removable Jaws
$1,049.00

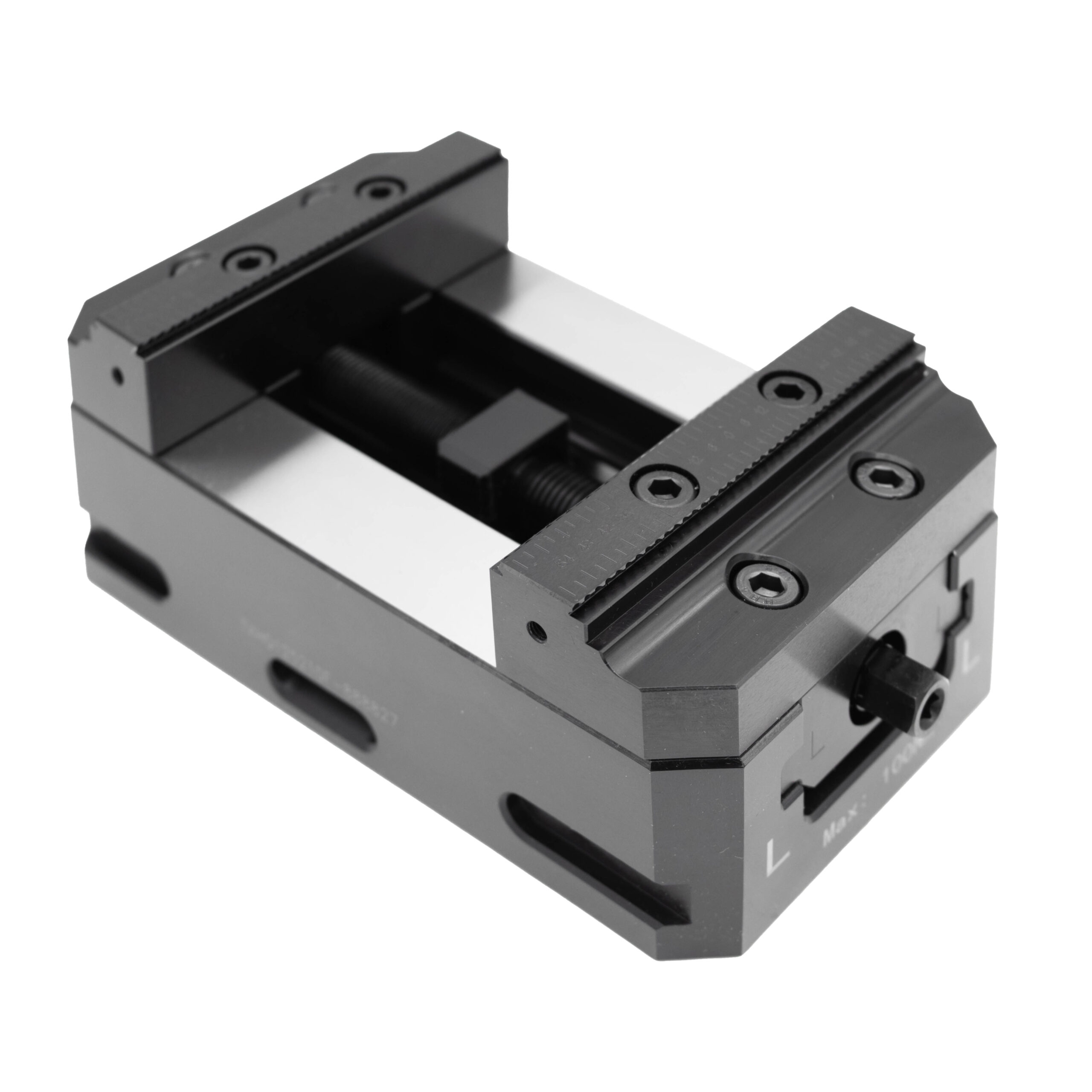

125 x 210 mm | Removable Jaws
Precision Workholding for Versatile and Repeatable Clamping
Demensions
Clamping Range
Weight
210×125×88.7 mm
0-170 mm
11.6 kg
The Full Grip – Self Centering Vice – 125 x 210 is built for high-accuracy clamping in demanding 3-axis and 5-axis CNC machining environments. With a larger 210 mm clamping range and 125 mm jaw width, this vice handles medium to large parts with consistent centerline alignment — perfect for symmetrical machining, multi-face access, and automated setups.
Equipped with removable jaws, this model offers full adaptability to suit a range of components and materials. Whether you’re switching between soft jaws for delicate parts or custom jaws for complex geometries, changeover is quick and seamless.
Key Features:
- Self-Centering Mechanism:
Both jaws move inward and outward simultaneously to ensure the workpiece is always clamped on true center — ideal for symmetrical milling, round parts, and 5-axis machining. - Removable / Interchangeable Jaws:
Hardened steel jaws included; easily swap to custom or soft jaws depending on the task — no tools required for jaw changeover. - Large Clamping Range:
Accommodates parts up to 210 mm wide, offering versatility for prototyping, batch work, or varied component sizes. - Rigid & Compact Body:
Designed with strength in mind, yet low-profile enough for maximum tool clearance in tight machining envelopes. - High Repeatability:
Ground surfaces and tight-tolerance internal guides ensure positioning accuracy within ≤ 0.01 mm across multiple cycles. - Modular Compatibility:
Mounts directly to machine tables, subplates, or zero-point systems via pull studs or bolt holes.
Additional information
| Weight | 11.6 kg |
|---|---|
| Dimensions | 210 × 125 × 88.7 mm |
| Material | Tool steel (HRC 45–55) |
| Clamping Range | 0-170 mm |
| Grid System |
