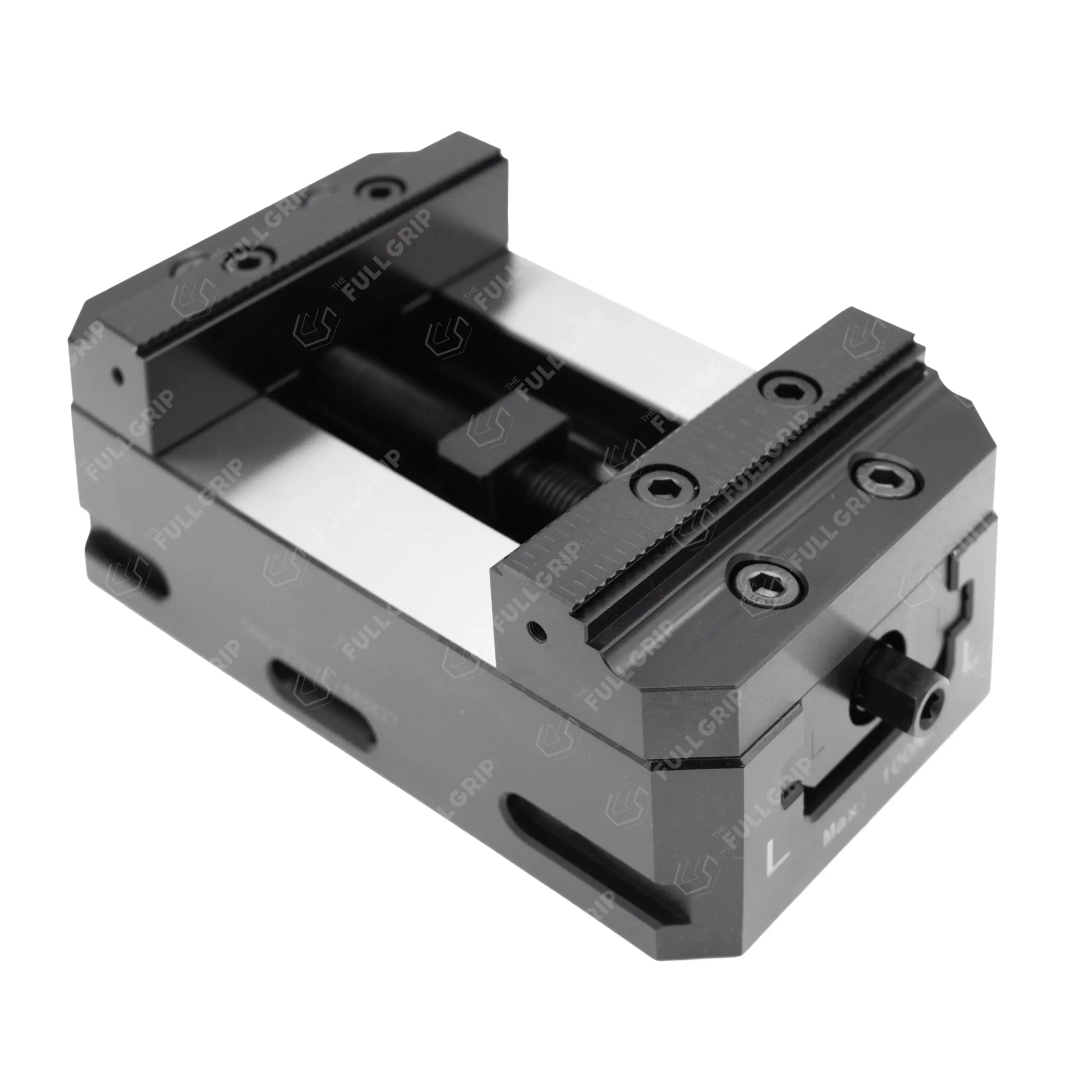

TFG Vice for Grid 96 – 125x210mm – Removable Jaws
$1,049.00
TFG Vice for Grid 52 – 125x310mm – Removable Jaws
$709.00
TFG Vice for Grid 96 – 125x160mm – Removable Jaws
$890.00
125 x 160 mm | Removable Jaws
High-Precision Centreline Clamping for 3- and 5-Axis Machining

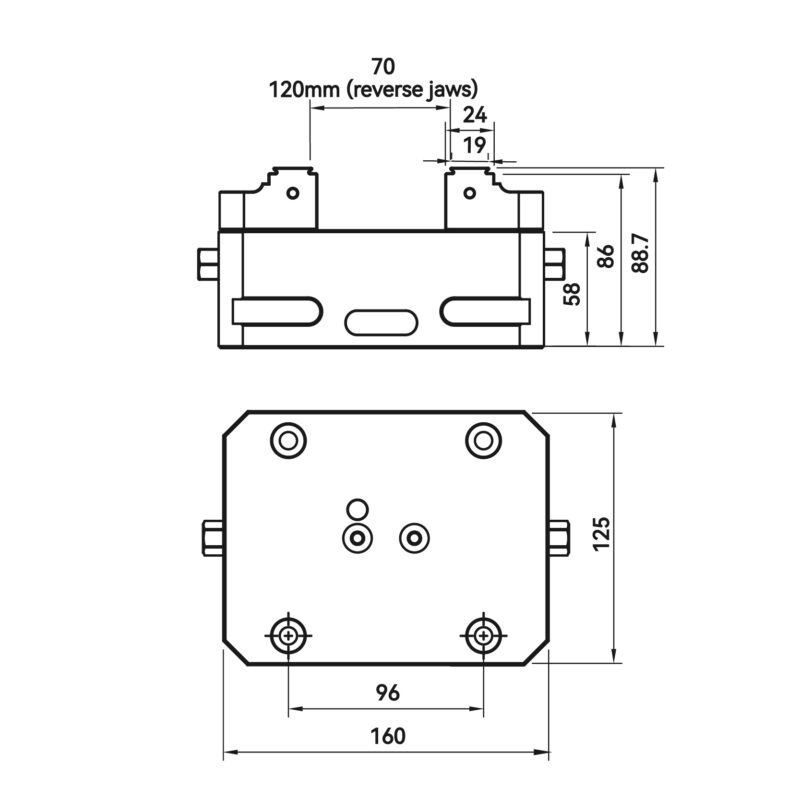

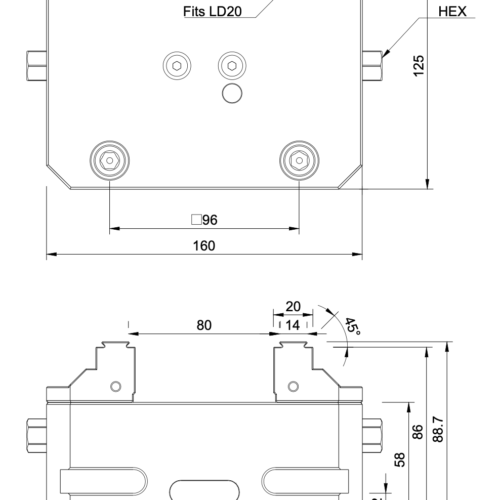

Demensions
Clamping Range
Weight
160×125×88.7 mm
0-120 mm
9.5 kg

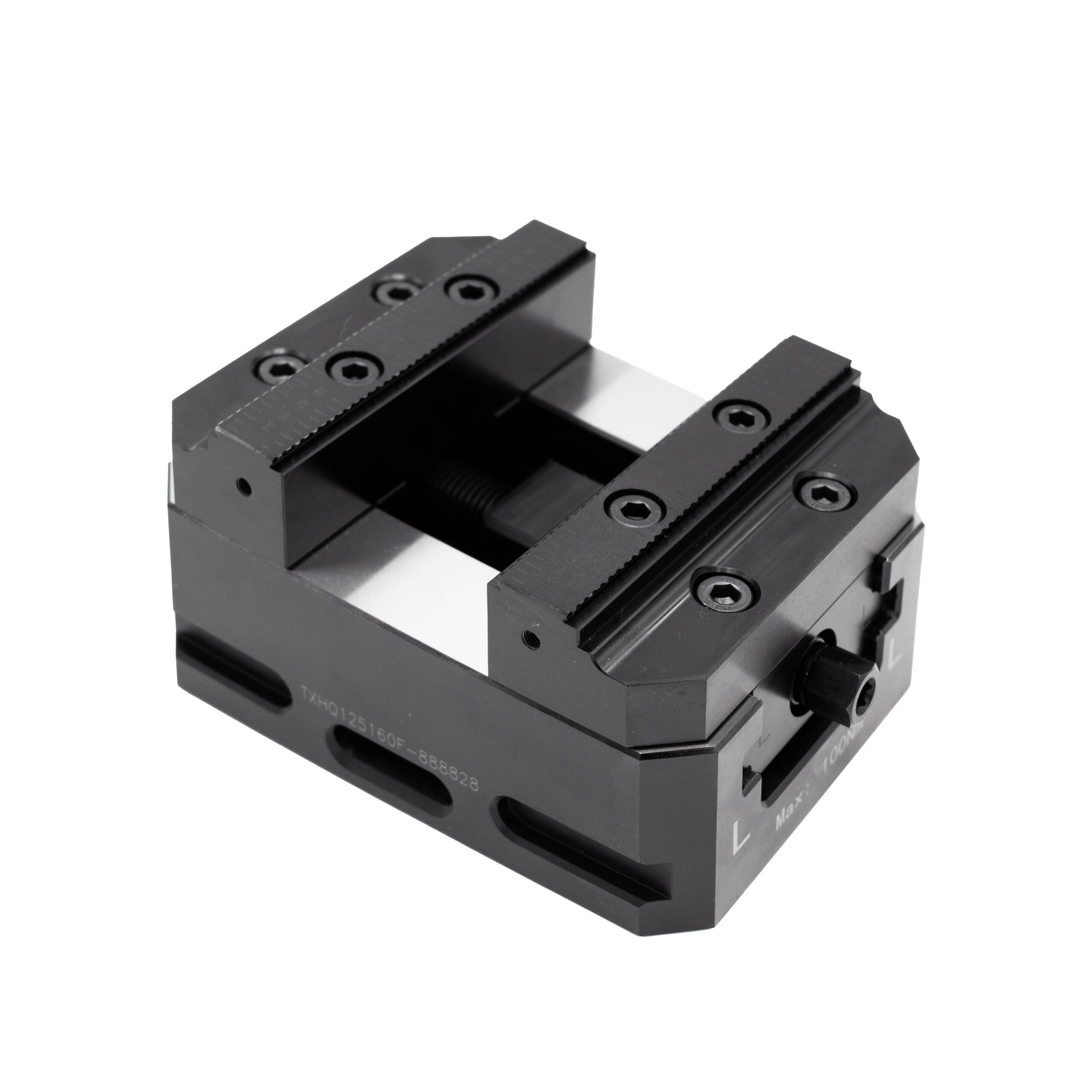

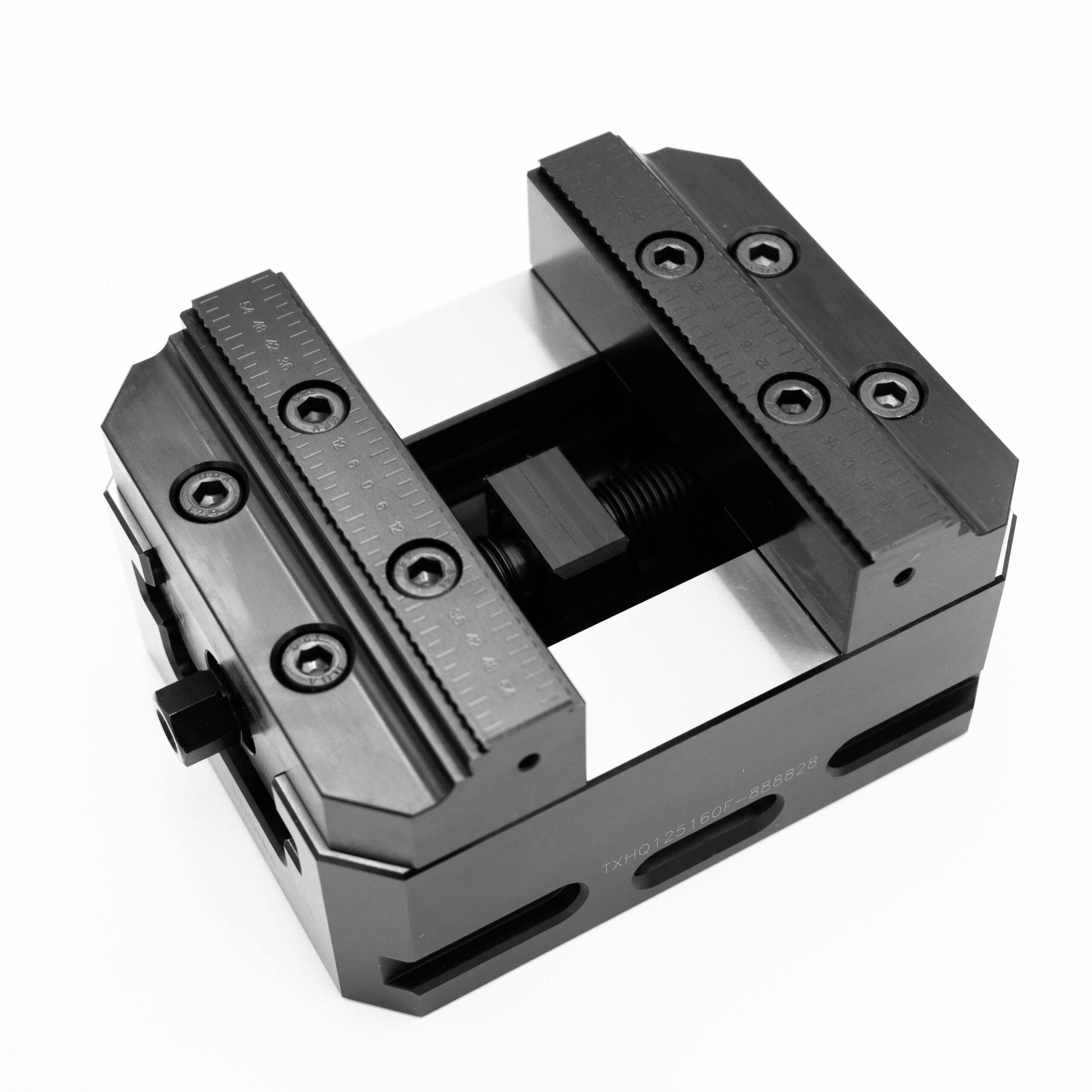

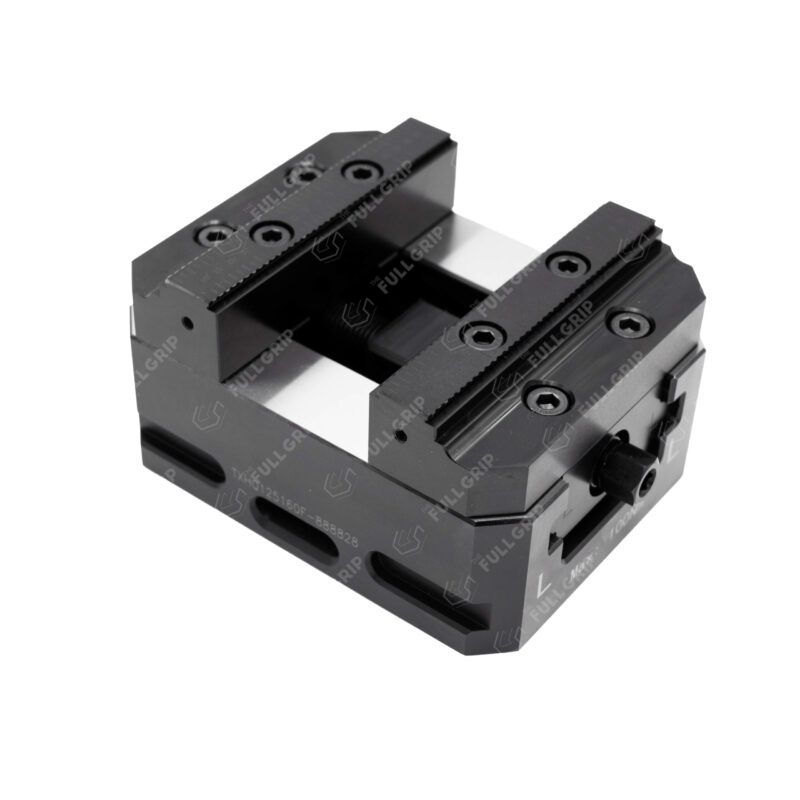

Engineered for precision and repeatability, the Full Grip – Self Centering Vice – 125 x 160 is built for machinists who demand quick setups, high holding power, and dead-on centreline accuracy. Its symmetrical clamping motion keeps parts perfectly centered, reducing the need for offsets and ensuring optimal tool clearance in 5-axis and multi-axis machining.

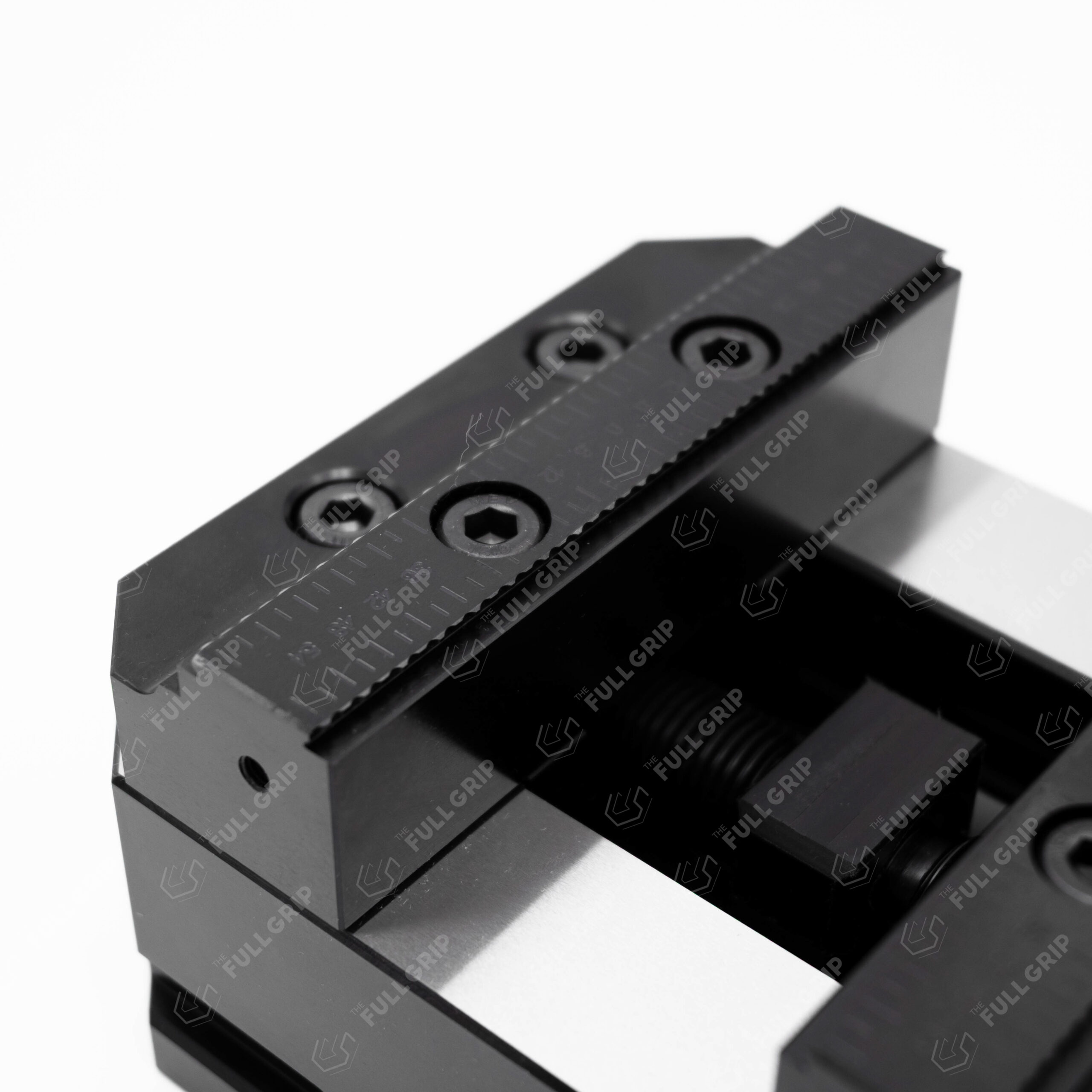

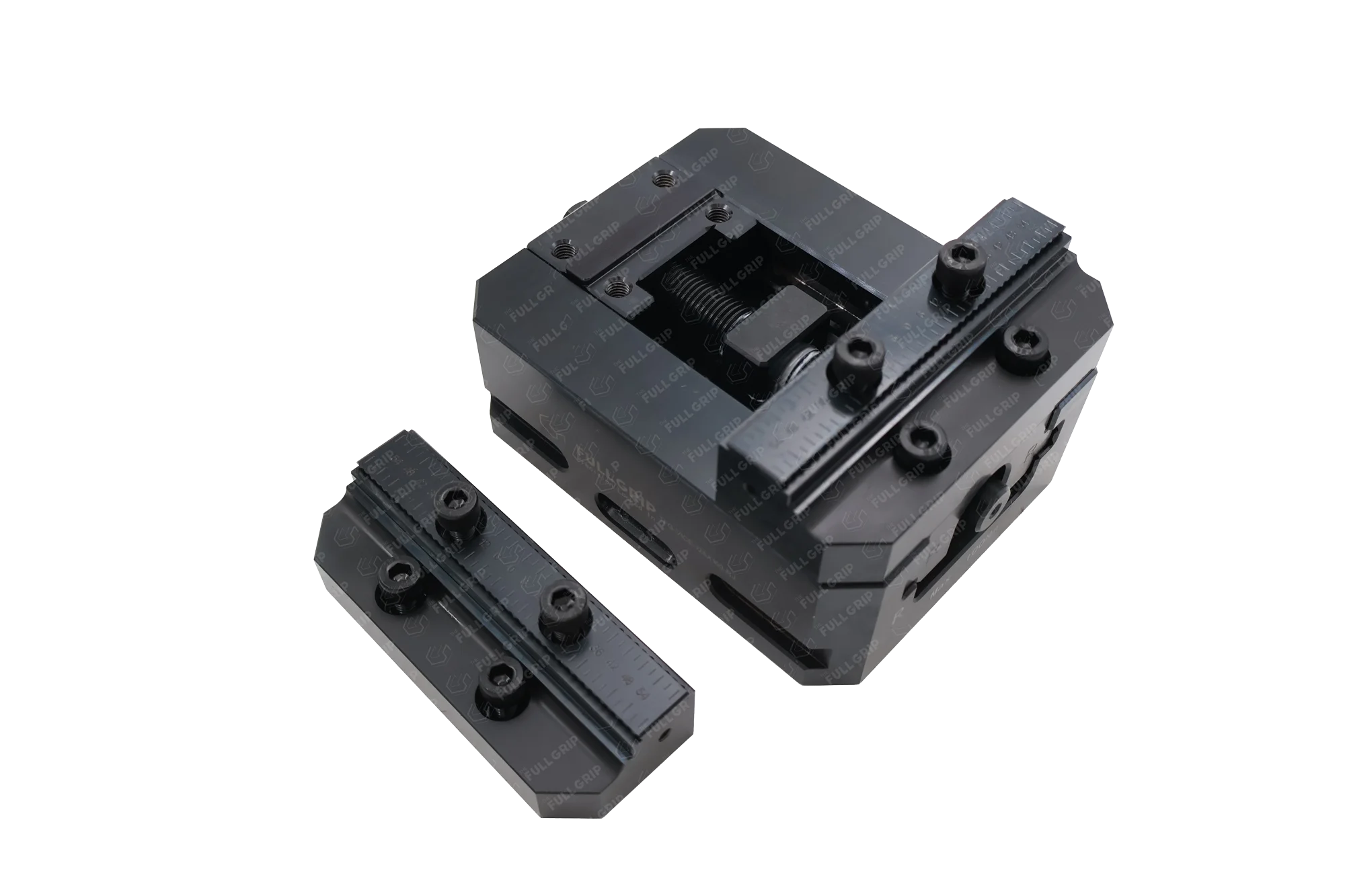

With a compact 125 mm jaw width and 160 mm clamping range, this vice is ideal for medium-sized components. The removable jaws provide ultimate flexibility — swap out to soft jaws, machinable inserts, or custom grippers in seconds to suit any job.
Key Features:
- Self-Centering Action:

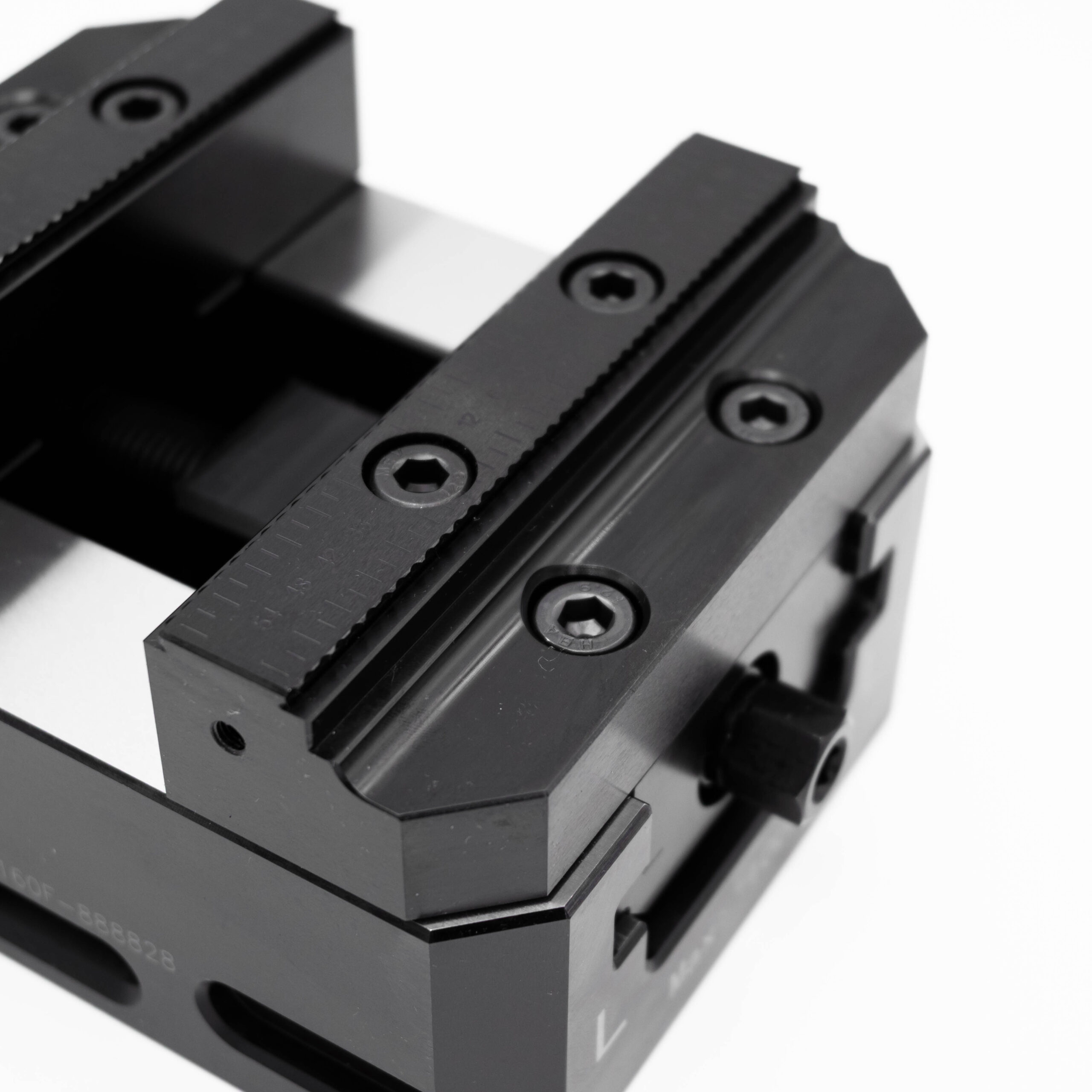

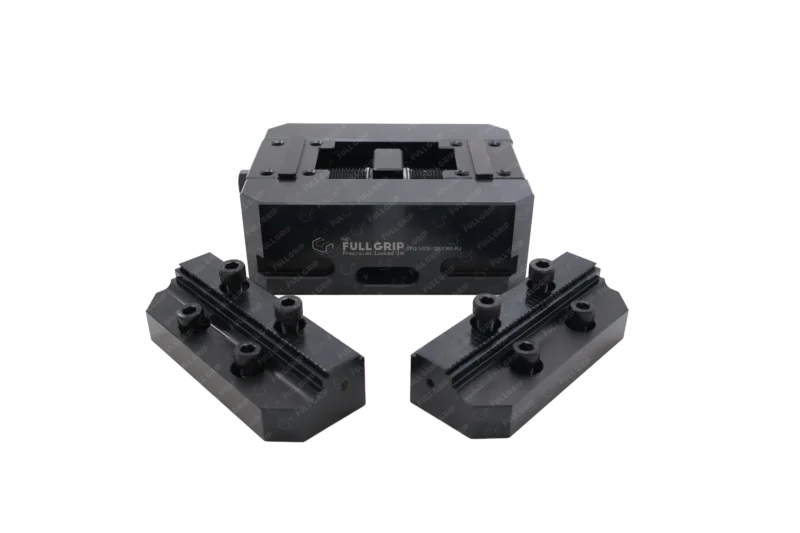

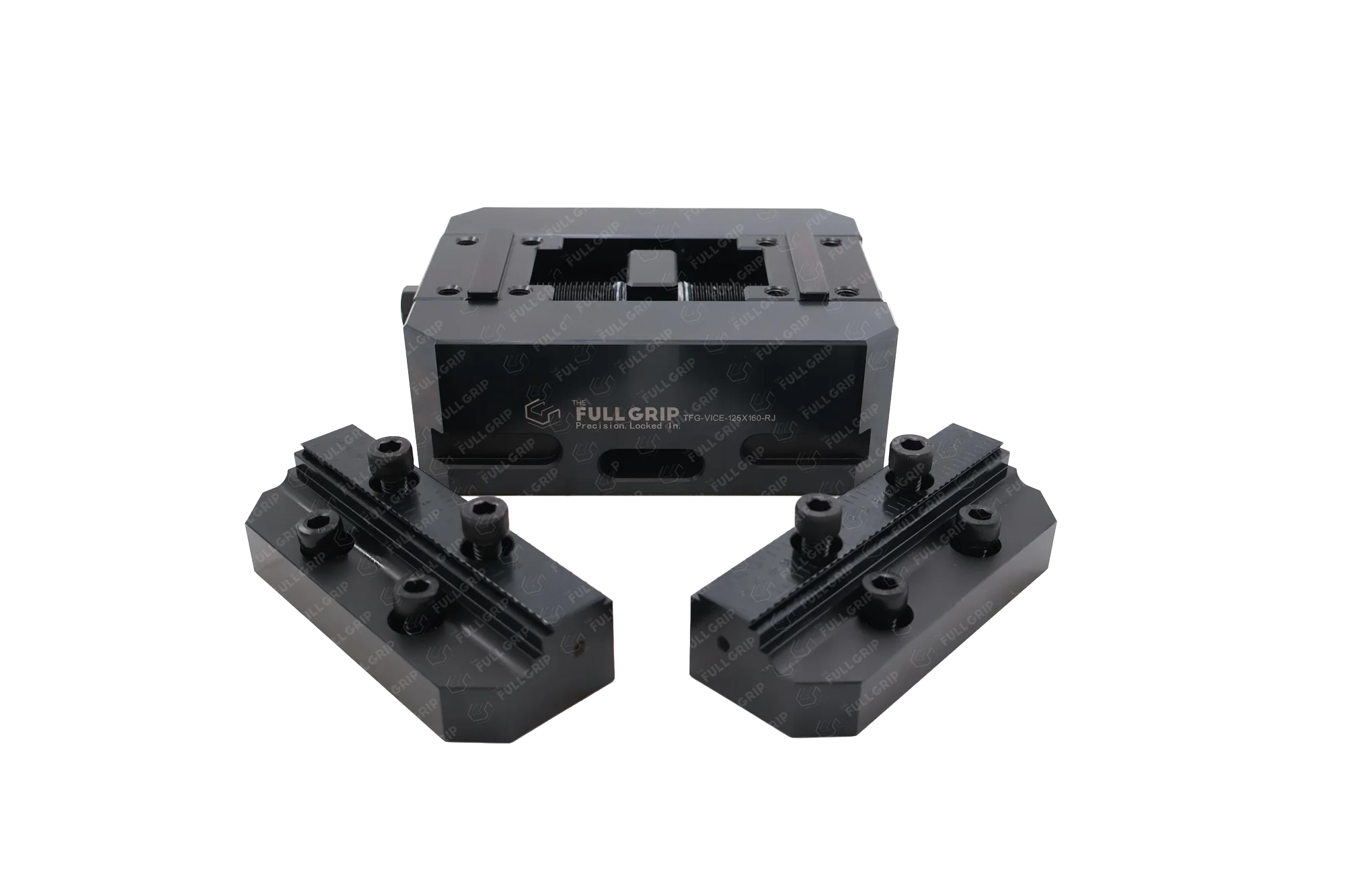

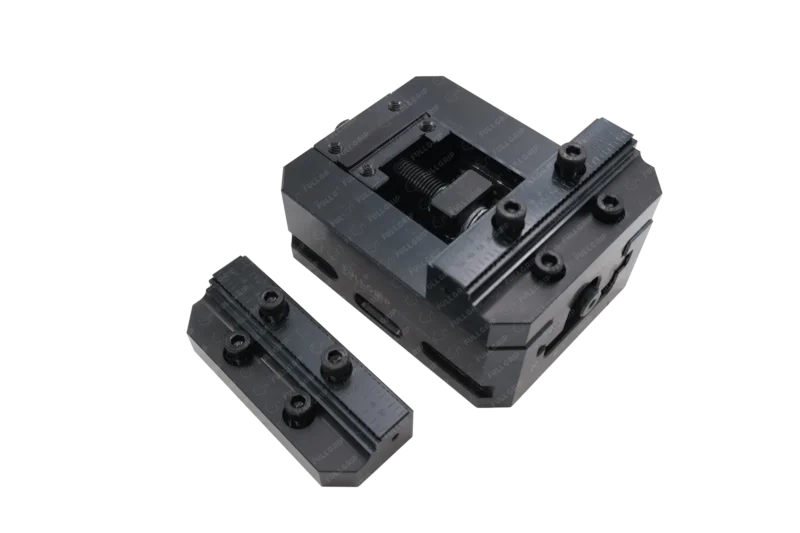

Automatically centers the workpiece with dual-motion jaws — ideal for symmetrical machining and consistent part alignment. - Removable Jaws:
Quick-change system lets you swap between hardened steel jaws, soft jaws, or custom profiles without disassembling the vice. - Compact & Rigid:
125 mm jaw width and robust body offer high rigidity while fitting neatly on smaller machine tables or tombstones. - High Repeatability:
Precision-ground body and guided slideways maintain positional accuracy to ≤ 0.01 mm across repeated cycles. - Optimised for 5-Axis:
Low-profile design with excellent tool clearance for multi-face access and tight toolpaths. - Zero-Point Ready:
Can be adapted to zero-point systems using pull studs for fast changeovers and modular integration.
Additional information
| Weight | 9.5 kg |
|---|---|
| Dimensions | 160 × 125 × 88.7 mm |
| Material | Tool steel (HRC 45–55) |
| Clamping Range | 0-120 mm |
| Grid System |
