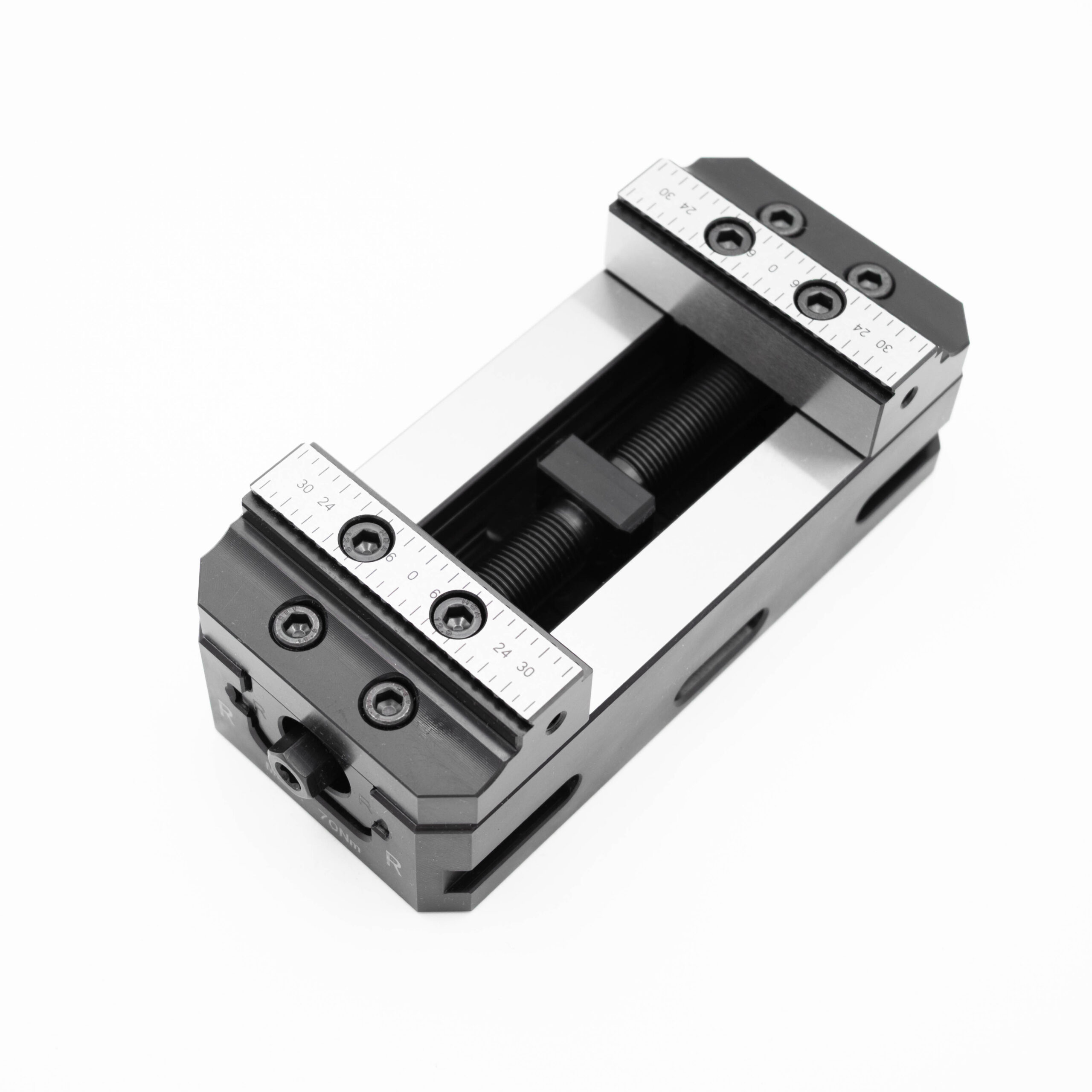

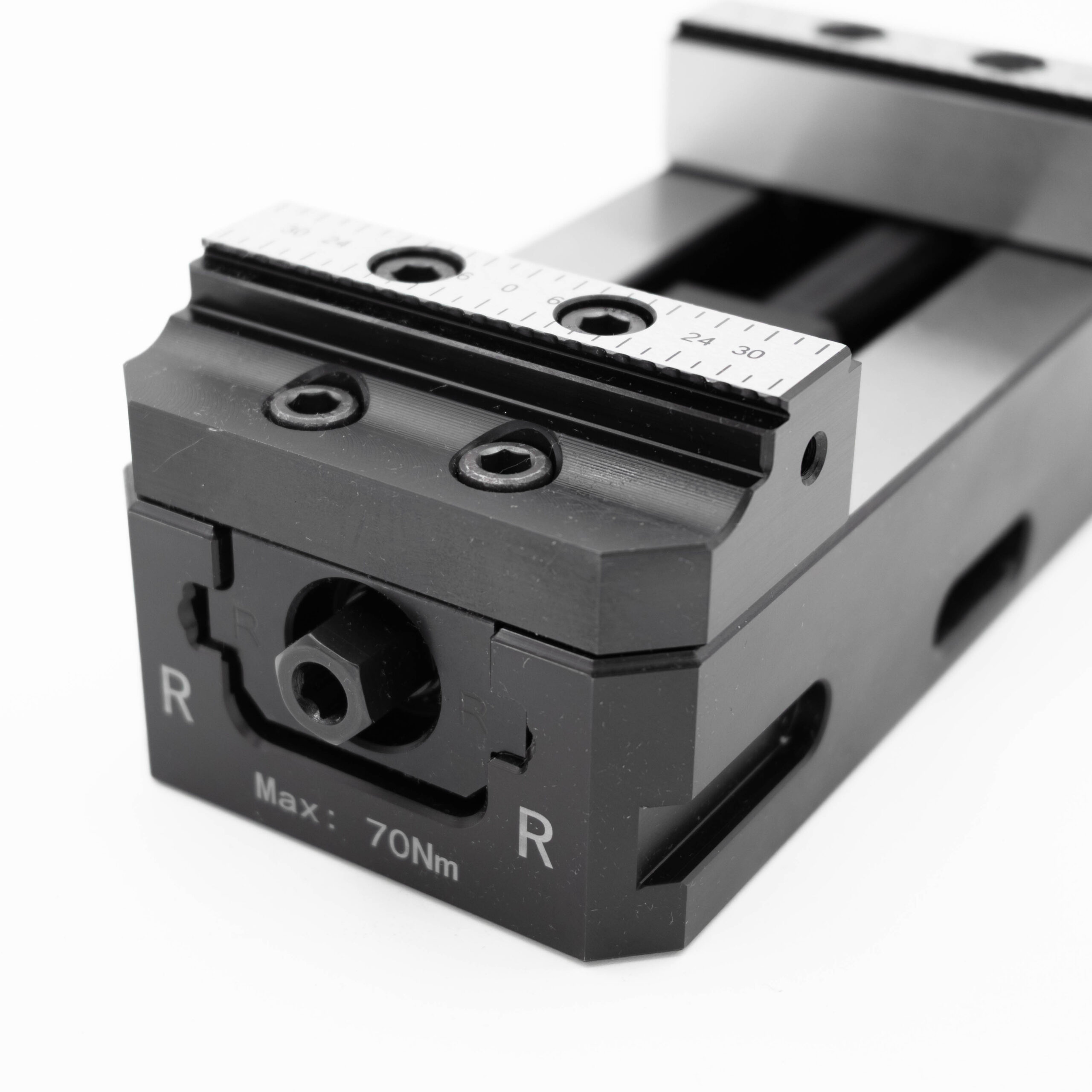

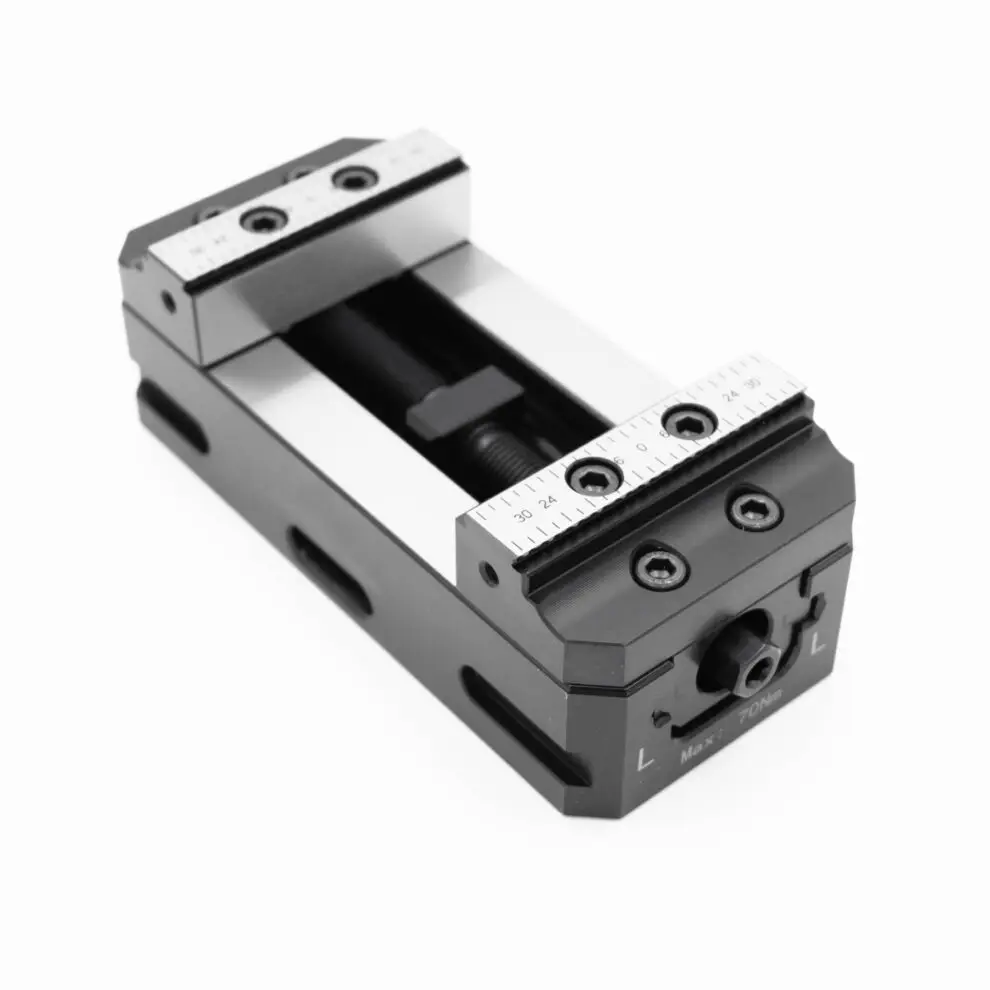

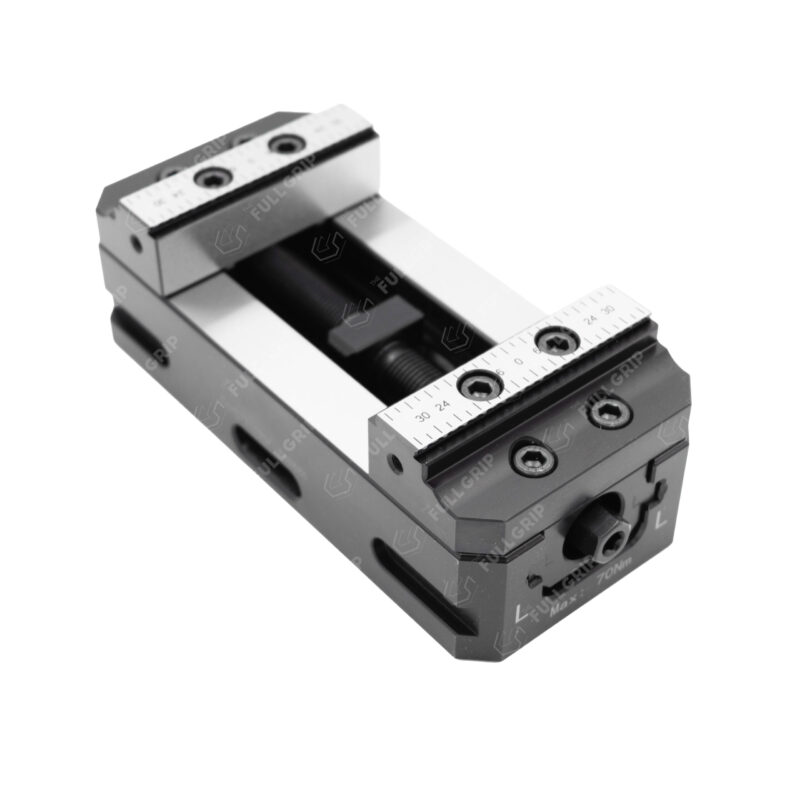

77 x 170 mm | Removable Jaws
Slimline Centering Vice for Precision Workholding in Tight Spaces

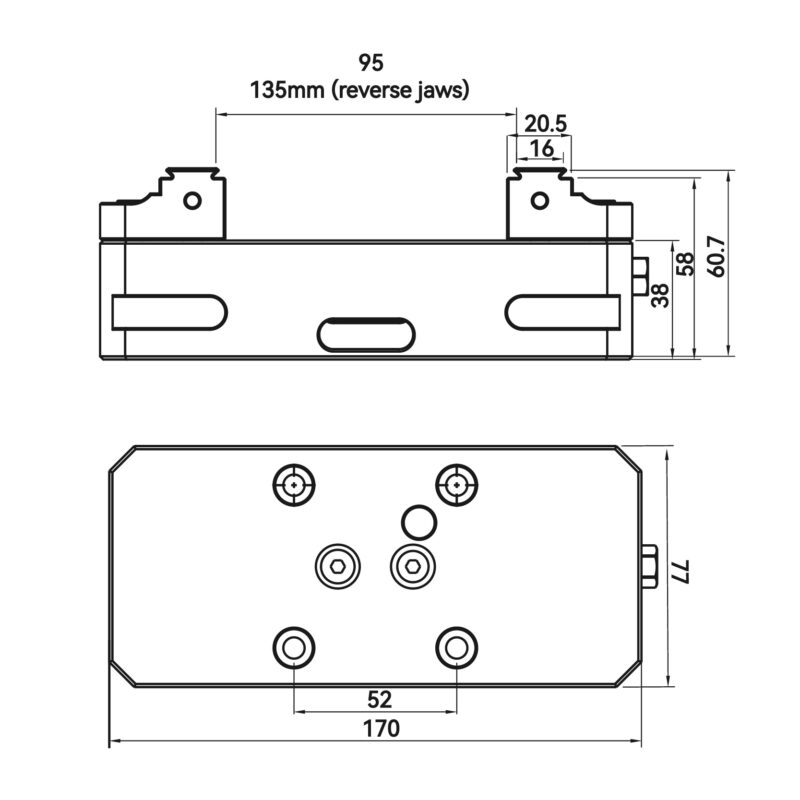

| Demensions | Clamping Range | Weight |
|---|---|---|
| 170×77×60.7 mm | 0-135 mm | 3.7 kg |
The Full Grip – Self Centering Vice – 77 x 170 offers an ideal balance of compact design and extended clamping capacity, making it perfect for small-to-mid sized components that require true centerline positioning and fast setup times. With a 77 mm jaw width and up to 170 mm of clamping range, this vice is built for tight setups, multi-vice configurations, and 5-axis machining where every millimeter of clearance counts.
Its removable jaw system allows quick adaptation to different parts and materials, supporting hardened jaws, soft jaws, or custom profiles — all while delivering consistent precision and rigid clamping.
Key Features:
- Extended Clamping in a Compact Body:
170 mm of clamping range in a small footprint, ideal for flexible fixture arrangements on small machines or tombstones. - Self-Centering Mechanism:
Both jaws move symmetrically to clamp parts on true centerline — simplifying programming and ensuring perfect balance. - Removable & Interchangeable Jaws:
Standard hardened steel jaws included; compatible with custom or soft jaw inserts for delicate or complex parts. - High Precision Construction:
Hardened steel body and precision-ground surfaces ensure repeatability of ≤ 0.01 mm and excellent vibration damping. - Low-Profile, 5-Axis Friendly:
Slim vertical height allows excellent tool access from all angles, making it ideal for 5-axis milling. - Zero-Point System Compatible:
Mounts via bolt pattern or optional zero-point pull studs for fast changeovers in modular setups.
Additional information
| Weight | 3.7 kg |
|---|---|
| Dimensions | 170 × 77 × 60.7 mm |
| Material | Tool steel (HRC 45–55) |
| Clamping Range | 0-135 mm |
| Grid System |
