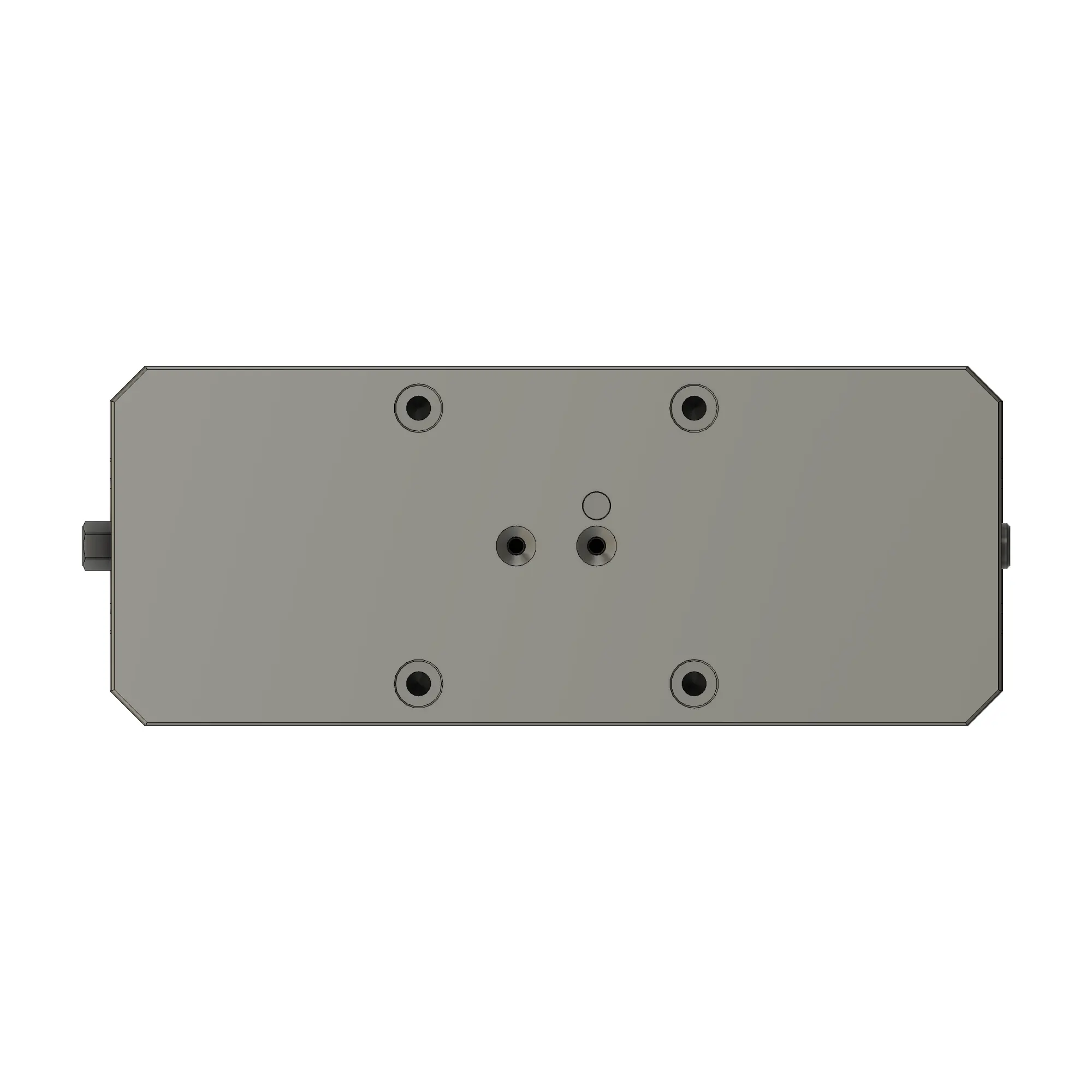

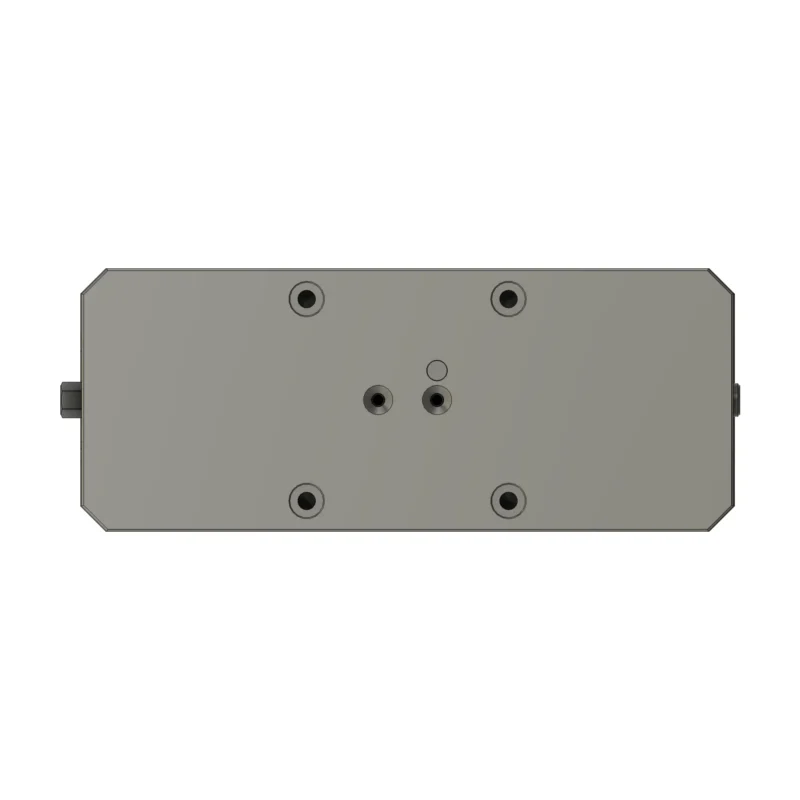

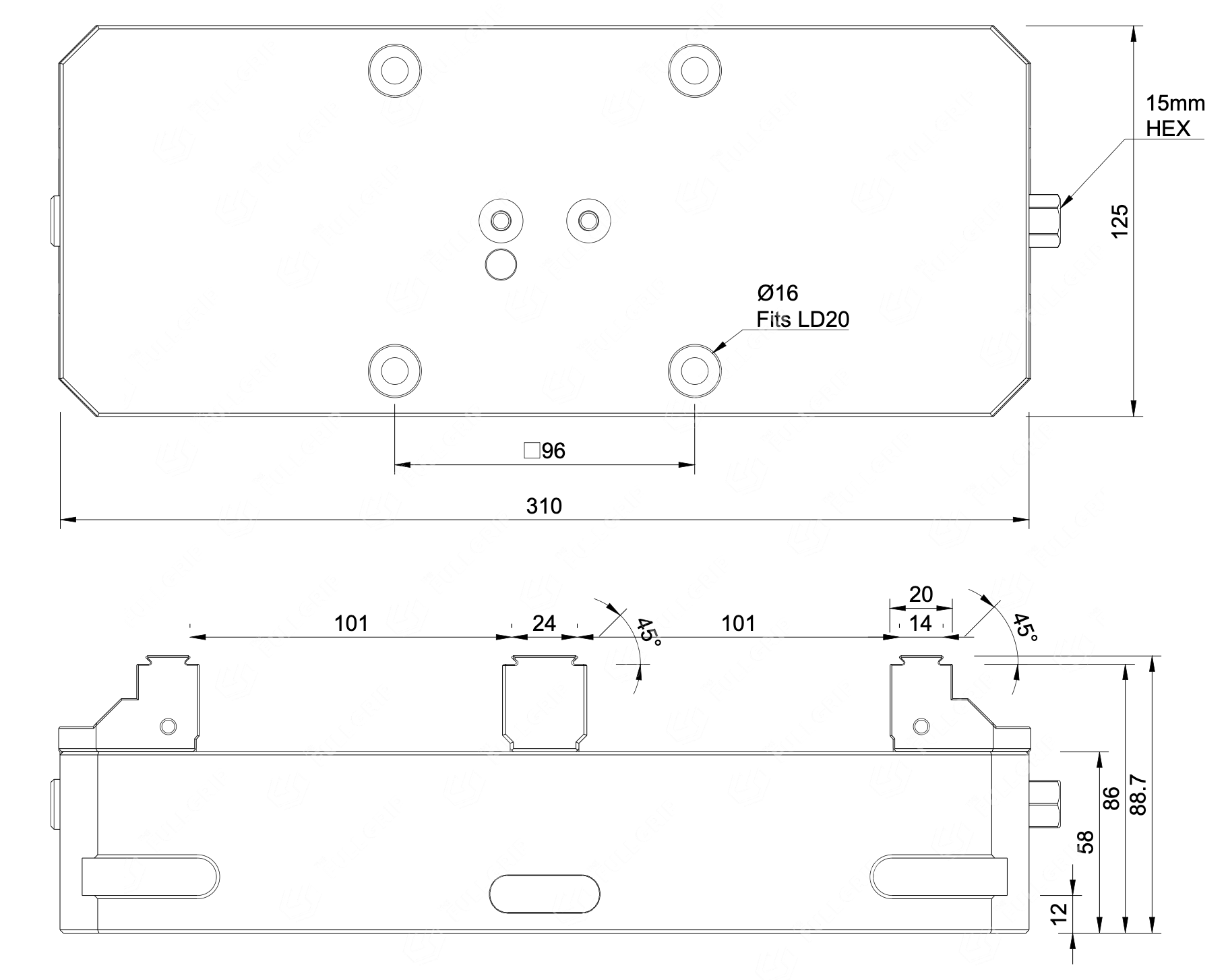

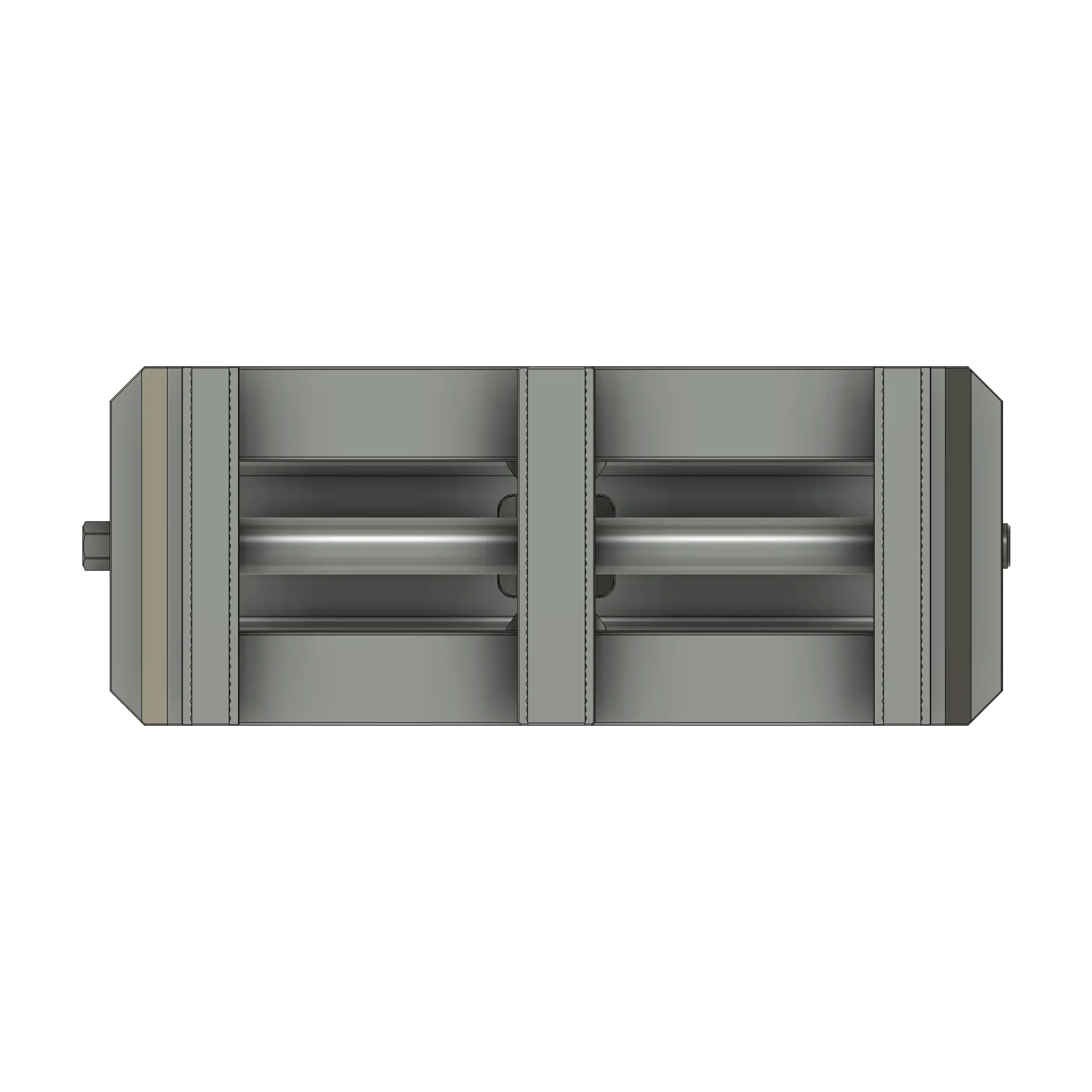

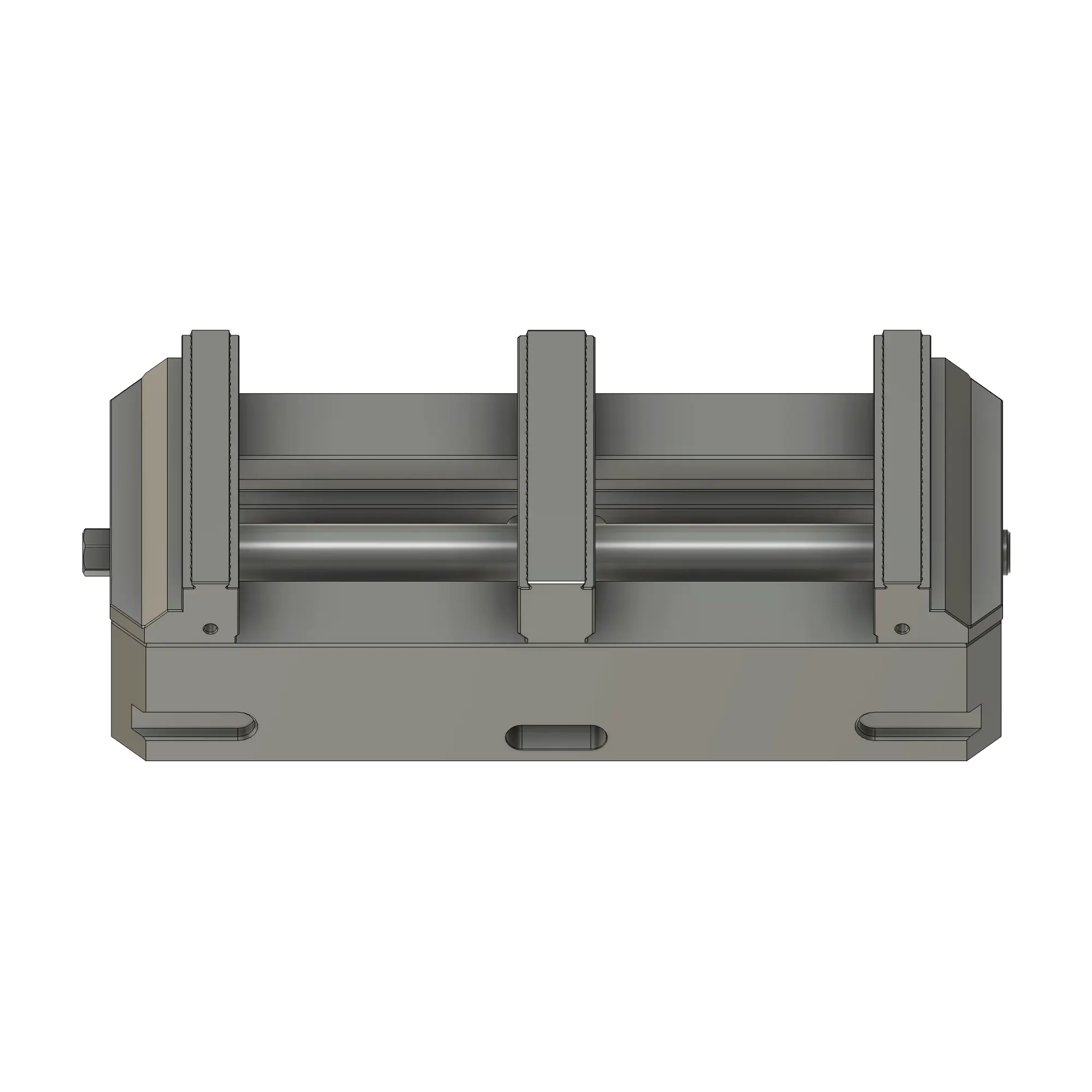

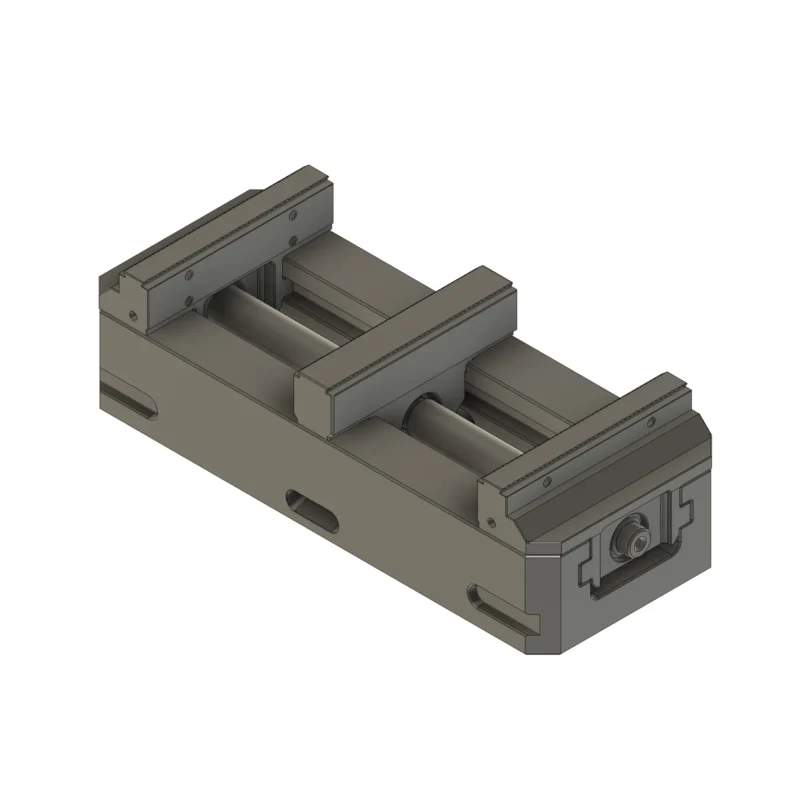

125x310mm Twin Station Self-Centering Vice with Fixed Jaws
$2,301.00 incl. GST
The TFG 125x310mm Twin Station Self-Centering Vice is a heavy-duty production powerhouse engineered to maximize throughput by securing two workpieces simultaneously. Designed for the System 96 grid (Ø20mm studs), this vice features an expansive 310mm body crafted from hardened tool steel to handle the most demanding CNC milling environments. What sets this model apart is its Fixed Jaw central architecture, which provides a rigid reference point that effectively doubles the stability of the setup compared to standard floating-jaw vices. Delivering a massive 20KN of clamping force per station and a ±0.02mm centering accuracy, it is ideal for high-volume 3, 4, and 5-axis production runs where maximizing parts-per-cycle on larger workpieces (up to 125mm per station) is critical for efficiency.
Additional information
| Weight | 15.9 kg |
|---|---|
| Dimensions | 31 × 12.5 × 8.87 cm |
| Material | |
| Grid System | |
| Clamping Stud Size | Ø20/96 |
| Clamping Range | |
| Clamping Force | 20KN |
| Torque | 100Nm |
| Centering Accuracy | ±0.02mm |
| Jaw Width |
